黑龙江省直击雷防护效率空间分布特征

袁湘玲1(),马虹旭2,周倩3,穆森1,尤少杰1

  1. 1. 齐齐哈尔市气象局, 黑龙江 齐齐哈尔 161006
    2. 辽宁省防雷技术服务中心, 辽宁 沈阳 110166
    3. 天津市防雷技术中心, 天津 340074
  • 收稿日期:2019-04-30 出版日期:2020-02-28 发布日期:2019-12-12
  • 作者简介:袁湘玲,女, 1970年生,高级工程师,主要从事气象灾害防御工作, E-mail:qqhryxl@aliyun.com
  • 基金资助:
    黑龙江省地方标准项目“雷电易发区及雷电灾害风险等级划分”(2018)

Spatial characteristics of the protection efficiency of the direct lightning in Heilongjiang province

Xiang-ling YUAN1(),Hong-xu MA2,Qian ZHOU3,Sen MU1,Shao-jie YOU1

  1. 1. Qiqihar Meteorological Service, Qiqihar 161006, China
    2. Service Center of Lightning Protection Technology in Liaoning Province, Shenyang 110166, China
    3. Tianjin Lighting Protection Center, Tianjin 300074, China
  • Received:2019-04-30 Online:2020-02-28 Published:2019-12-12

RichHTML

2

PDF (PC)

30

摘要：

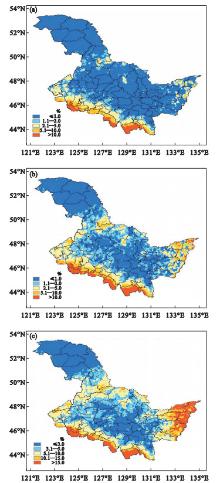

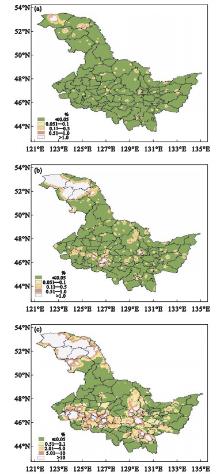

基于2008—2016年黑龙江省ADTD闪电定位数据，利用反距离权重插值法和Pearson相关分析法，研究了地闪密度、地闪强度、绕击率和反击率的空间分布特征，分析了黑龙江省不同防雷类别的直击雷防护效率。结果表明：地闪密度和地闪强度的空间分布呈负相关，相关系数为-0.608；绕击率和地闪密度呈正相关，与地闪强度呈低度负相关；反击率地闪密度呈低度负相关，与地闪强度均呈显著正相关。黑龙江省不同防雷类别直击雷防护保护范围内的绕击率分别为0.04%、0.71%和4.59%，即第一、二、三类防雷类别直击雷防护效率分别为99.96%、99.29%和95.41%。按照《建筑物防雷设计规范》计算第一、二、三类防雷建筑物的安全距离时，将会分别存在3.16%、4.64%和7.32%左右发生反击的风险。

关键词: 直击雷, 防护效率, 绕击率, 反击率

Abstract:

Based on lightning location data in Heilongjiang province, the spatial distribution characteristics of ground flash density, ground flash intensity, shielding failure rate and counterattack rate were studied and the protection efficiencies of the different types of direct lightning were analyzed by using IDW and Pearson correlation analysis method.The results show that the spatial distributions of ground flash density and intensity are negatively correlated and the correlation coefficient is -0.608.The shielding failure rate is positively correlated with the ground flash density but is negatively correlated with the ground flash intensity.The counter-attack rate is negatively correlated with the ground flash density and is positively correlated with the ground flash intensity.In addition, the shielding failure rates of the first, second and third types of lightning protection buildings in Heilongjiang province are 0.04%, 0.71%, and 4.59%, meaning that the lightning protection efficiencies of three types of direct lightning protection buildings are 99.96%, 99.29%, and 95.41%, respectively.Besides, when the safety distances of the lightning protection buildings are calculated according to the design norm for protection of structures against lightning, the risk of counterattack of the first, second and third types of lightning protection buildings will reach 3.16% 4.64% and 7.32%, respectively.

Key words: Direct lightning, Protection efficiency, Shielding failure rate, Counterattack rate
