基于Ka波段云雷达的六盘山顶云特征分析

doi:10.3969/j.issn.1673-503X.2021.02.012

Abstract

Abstract:

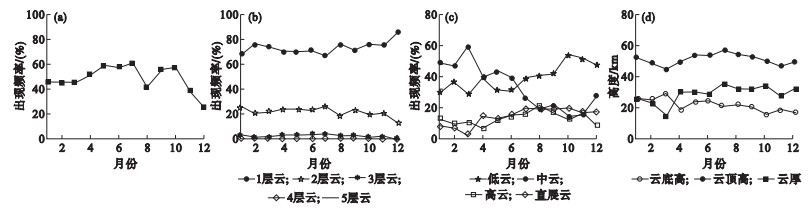

Based on the Ka-band cloud radar observation data of Liupan mountain meteorological station from September of 2017 to August of 2018, the occurrence frequency and macro characteristics of different clouds at the top of the Liupan mountain were analyzed.The results show that the highest occurrence frequency of Liupan mountain cloud i.e.61% appears in July, and the lowest value i.e.26% appears in December.Divided by the number of clouds, the clouds at the top of Liupan mountain are mainly one layer of cloud, two layers of clouds and three layers of clouds, their monthly average occurrence frequencies relative to total clouds are 68%-86%, 14%-27% and 0.4%-4.8%, respectively.Divided by cloud bottom height and cloud thickness, the ratios of monthly average occurrence frequencies of the low, medium, and high clouds and straight cloud to the total cloud are 29%-53%, 14%-58%, 6%-22%, and 2%-20%, respectively.The height of the cloud base is higher in winter and spring than in summer and autumn.The height of cloud top is higher in summer and autumn than in winter and spring.The thickness of clouds is between 1.6 km and 3.6 km and its annual variation characteristics are similar to that of the cloud top height.On the whole, the thicknesses of clouds in spring, summer, and autumn are larger in the daytime than in nighttime, while the thickness of clouds in winter is larger in nighttime than in the daytime.Besides, the cloud thicknesses in summer and autumn both indicate obvious diurnal variation characteristics.

Key words: Cloud radar, Height of cloud base, Low cloud, Occurrence frequency

CLC Number:

P414.9⁺1

Lei TIAN,Jian-ren SANG,Zhan-yu YAO,Zhuo-lin CHANG,Zhi-liang SHU,Ning CAO. Preliminary analysis of cloud macro characteristics over the Liupan mountain based on Ka-band cloud radar[J]. Journal of Meteorology and Environment, 2021, 37(2): 84-90.

Figures/Tables 7

Fig.1

Fig.2

Fig.3

Table 1

Fig.4

Fig.5

Fig.6

References 32

1	盛裴轩, 毛节泰, 李建国, 等. 大气物理学[M]. 2版北京: 北京大学出版社, 2013: 296- 298.
2	韩成鸣, 李耀东, 史小康. 云分析预报方法研究进展[J]. 地球科学进展, 2015, 30 (4): 505- 516.
3	Freud E , Rosenfeld D , Andreae M O , et al. Robust relations between CCN and the vertical evolution of cloud drop size distribution in deep convective clouds[J]. Atmospheric Chemistry and Physics, 2008, 8 (6): 1661- 1675. doi: 10.5194/acp-8-1661-2008
4	Lohmann U , Feichter J . Gloabal indirect aerosol effects: a review[J]. Atmospheric Chemistry and Physics, 2005, 5 (3): 715- 737. doi: 10.5194/acp-5-715-2005
5	石广玉, 王标, 张华, 等. 大气气溶胶的辐射和气候效应[J]. 大气科学, 2008, 32 (4): 826- 840. doi: 10.3878/j.issn.1006-9895.2008.04.11
6	杨磊, 贺宏兵, 杨波, 等. 基于S波段双线偏振天气雷达的降水粒子相态识别[J]. 气象与环境学报, 2019, 35 (4): 127- 132. doi: 10.3969/j.issn.1673-503X.2019.04.018
7	Frey R A , Baum B A , Menzel W P , et al. A comparison of cloud top heights computed from airbome lidar and MAS radiance data using CO₂ slicing[J]. Journal of Geophysical Research: Atmospheres, 1999, 104 (20): 24547- 24555.
8	Ackerman T , Stokes G . The atmospheric radiation measurement program[J]. Physics Today, 2003, 56 (1): 38- 45. doi: 10.1063/1.1554135
9	雷恒池, 洪延超, 赵震, 等. 近年来云降水物理和人工影响天气研究进展[J]. 大气科学, 2008, 32 (4): 967- 974. doi: 10.3878/j.issn.1006-9895.2008.04.21
10	郭学良, 付丹红, 胡朝霞. 云降水物理与人工影响天气研究进展(2008—2012年)[J]. 大气科学, 2013, 37 (2): 351- 363.
11	周毓荃, 赵殊慧. CloudSat卫星及其在天气和云观测分析中的应用[J]. 南京气象学院学报, 2008, 31 (5): 603- 614. doi: 10.3969/j.issn.1674-7097.2008.05.001
12	周德平, 苏航, 耿树江, 等. 辽沈地区不同高度大气冰核数浓度的飞机观测[J]. 气象与环境学报, 2018, 34 (6): 133- 139. doi: 10.3969/j.issn.1673-503X.2018.06.016
13	康增妹, 李忠亮, 刘伟, 等. 河北省一次降水云系云物理结构的飞机探测研究[J]. 气象与环境学报, 2019, 35 (4): 1- 7. doi: 10.3969/j.issn.1673-503X.2019.04.001
14	吴翀, 刘黎平, 翟晓春. Ka波段固态发射机体制云雷达和激光云高仪探测青藏高原夏季云底能力和效果对比分析[J]. 大气科学, 2017, 41 (4): 659- 672.
15	王喆, 王振会, 曹晓钟. 毫米波雷达与无线电探空对云垂直结构探测的一致性分析[J]. 气象学报, 2016, 74 (5): 815- 826.
16	章文星, 吕达仁. 地基热红外云高观测与云雷达及激光云高仪的相互对比[J]. 大气科学, 2012, 36 (4): 657- 672.
17	仲凌志, 刘黎平, 葛润生. 毫米波测云雷达的特点及其研究现状与展望[J]. 地球科学进展, 2009, 24 (4): 383- 391. doi: 10.3321/j.issn:1001-8166.2009.04.004
18	武静雅, 刘黎平, 郑佳锋. 固态毫米波雷达探测模式的对比评估与分析[J]. 气象, 2016, 42 (7): 790- 798.
19	刘光普, 黄思源, 梁莺, 等. 毫米波雷达在港口海雾观测和能见度反演中的应用[J]. 干旱气象, 2019, 37 (6): 993- 1004.
20	刘黎平, 谢蕾, 崔哲虎. 毫米波云雷达功率谱密度数据的检验和在弱降水滴谱反演中的应用研究[J]. 大气科学, 2014, 38 (2): 223- 236. doi: 10.3969/j.issn.1674-7097.2014.02.011
21	谢丽萍, 王德旺, 黄宁立, 等. 基于云雷达的大气0℃层亮带识别[J]. 干旱气象, 2016, 34 (3): 472- 480.
22	王德旺, 曲明星, 黄宁立, 等. 基于云雷达反射率因子的云宏观参量反演[J]. 干旱气象, 2016, 34 (6): 1071- 1077.
23	朱泽恩, 郑创, 葛觐铭, 等. 利用KAZR云雷达对SACOL站云宏观特性的研究[J]. 科学通报, 2017, 62 (8): 824- 835.
24	邱玉珺, 杨会文, 倪婷, 等. 基于美国AMF寿县观测的云特性研究[J]. 大气科学学报, 2012, 35 (1): 80- 86. doi: 10.3969/j.issn.1674-7097.2012.01.009
25	吴举秀, 魏鸣, 王以琳. 利用毫米波测云雷达反演层状云中过冷水[J]. 干旱气象, 2015, 33 (2): 227- 235.
26	谢晓林, 刘黎平. 云雷达联合微波辐射计反演混合性降水层云液态水含量的方法研究[J]. 暴雨灾害, 2016, 35 (1): 1- 9. doi: 10.3969/j.issn.1004-9045.2016.01.001
27	陈羿辰, 金永利, 丁德平, 等. 毫米波测云雷达在降雪观测中的应用初步分析[J]. 大气科学, 2018, 42 (1): 134- 149.
28	田磊, 桑建人, 姚展予, 等. 六盘山区夏秋季大气水汽和液态水特征初步分析[J]. 气象与环境学报, 2019, 35 (6): 28- 37. doi: 10.3969/j.issn.1673-503X.2019.06.005
29	Zhang J Q , Chen H B , Li Z Q , et al. Analysis of cloud layer structure in Shouxian, China using RS92 radiosonde aided by 95 GHz cloud radar[J]. Journal of Geophysical Research, 2010, (115): D00K3.
30	周毓荃, 蔡淼, 欧建军, 等. 云特征参数与降水相关性的研究[J]. 大气科学学报, 2011, 34 (6): 641- 652. doi: 10.3969/j.issn.1674-7097.2011.06.002
31	李积明, 黄建平, 衣育红, 等. 利用星载激光雷达资料研究东亚地区云垂直分布的统计特征[J]. 大气科学, 2009, 33 (4): 698- 707. doi: 10.3878/j.issn.1006-9895.2009.04.04
32	李海飞, 乐满, 杨飞跃, 等. 基于地基云雷达资料的淮南地区冬季云宏观特征[J]. 干旱气象, 2017, 35 (6): 1011- 1014, 1035.

观测地点	观测时间	总云频率/(%)	低云频率/(%)	中云频率/(%)	高云频率/(%)	直展云频率/(%)
宁夏六盘山气象站	2017.09—2018.08	26—61(SD: 10%)	29—53(SD: 8%)	14—58(SD: 15%)	6—22(SD: 4%)	2—20(SD: 6%)
兰州榆中萃英山顶^[24]	2014.01—2014.12	44.4—75.9	3.0—21.9	22.3—43.6	22.2—47.9	1.2
安徽省寿县^[25]	2008.10.15—2008.12.15	54.0	14.4	37.8	38.9	-
安徽省淮南上窑^[32]	2015.01	13.7—21.8	44.0	29.4	26.6	-
