基于ENVI-met的福州大学校区冬季热环境模拟与热舒适度变化分析

doi:10.3969/j.issn.1673-503X.2021.06.006

摘要/Abstract

摘要：

选取福州大学校园教学区为研究区域，基于典型冬季日背景，运用三维非静力微气候模型ENVI-met，分析模拟校园热环境的差异变化及其热舒适度响应。结合实地勘测，对模型进行校准和验证。结果表明：ENVI-met模型能较好地表征室外热环境，准确预测温度和相对湿度的日变化趋势。混凝土路面、灰色地砖路面行人高度的日平均气温分别比草地高出0.1 ℃和0.3 ℃，逐时最大温差分别为0.68 ℃和0.65 ℃。建筑物阴影和树阴可降低行人高度的气温1.1—1.9 ℃；同一组团在有无遮阴的条件下，平均辐射温度（T_mrt）相差最大可达30 ℃；树木附近和建筑物组团内部生理等效温度（PET）值较小，比硬质路面低2—3个等级。无植被方案下，高温低湿区范围有所扩张，在垂直方向上的增温效应可伸展至10.5 m；风速最大增幅可达1.23 m·s^-1，平均辐射温度较高区域的面积增加了69.25%；热舒适区和热不适区面积分别增加了19.78%和2.03%。

关键词: 微气候, ENVI-met, 模型模拟, 热舒适度

Abstract:

In this study, we simulated and analyzed the variation of thermal environment and its thermal comfort response on typical winter days in the research area (teaching area in Fuzhou University) using a three-dimensional non-static microclimate model ENVI-met.We also calibrated and verified the ENVI-met model based on a field survey.The results show that the ENVI-met model can well represent the outdoor thermal environment and accurately predict the diurnal variation of air temperature and relative humidity.The daily mean air temperature at the pedestrian's height over concrete pavement and gray brick pavement is 0.1℃ and 0.3℃ higher than that on grassland, and their maximum hourly temperature difference reaches 0.68℃ and 0.65℃, respectively.Building and tree shadows can reduce air temperature at the pedestrian's height by 1.1-1.9℃.The difference of mean radiant temperature (T_mrt) in the same cluster with and without shade can reach up to 30℃.The value of physiological equivalent temperature (PET) near trees and inside building clusters is 2-3 grades lower than that over the hard pavement.In the vegetation-free scheme, the areas with high temperature and low humidity are expanded, and the warming effect in the vertical direction can extend to 10.5 m.Meanwhile, wind speed increases by 1.23 m·s^-1 at the most, the areas with higher mean radiant temperature increase by 69.25%, and the thermal comfort zone and thermal discomfort zone increase by 19.78% and 2.03%, respectively.The research results can favor the urban planning and landscape design for better space construction and greening improvement and can provide some guidance and reference for the optimization of the layout of various underlying surfaces and the selection of vegetation types.

Key words: Microclimate, ENVI-met, Model simulation, Thermal comfort

中图分类号:

P463.3

庄莉娟,蔡芫镔,祁娟娟. 基于ENVI-met的福州大学校区冬季热环境模拟与热舒适度变化分析[J]. 气象与环境学报, 2021, 37(6): 44-52.

Li-juan ZHUANG,Yuan-bin CAI,Juan-juan QI. Simulation of thermal environment and analysis of thermal comfort variation in wintertime in Fuzhou University campus using ENVI-met[J]. Journal of Meteorology and Environment, 2021, 37(6): 44-52.

图/表 8

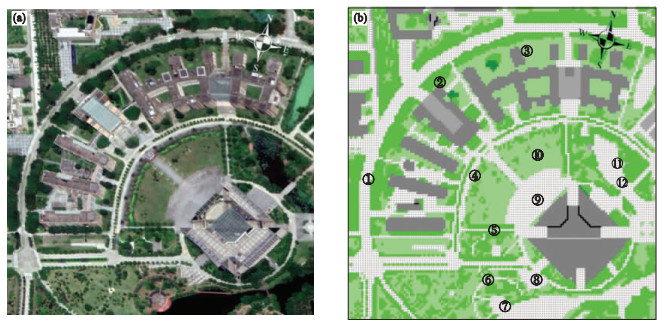

图1

表1

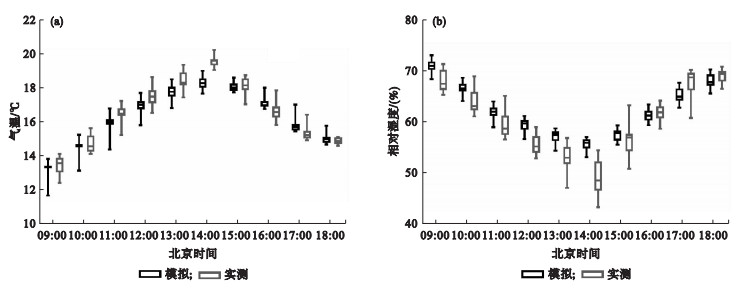

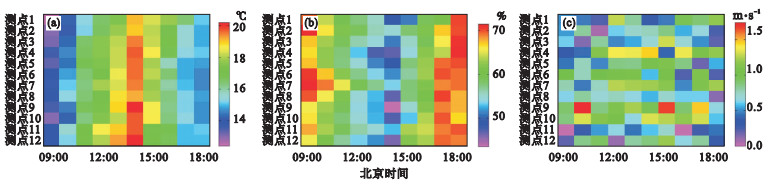

图2

图3

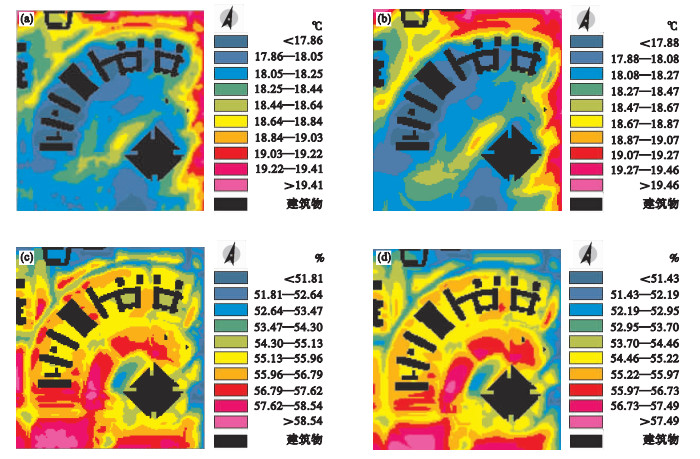

图4

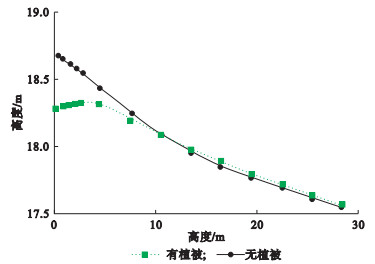

图5

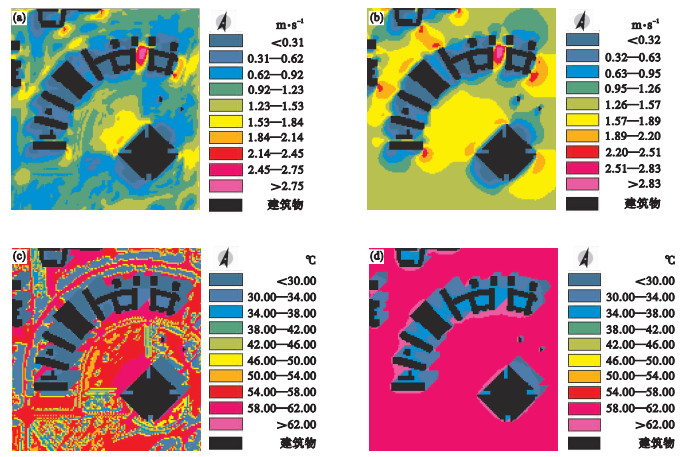

图6

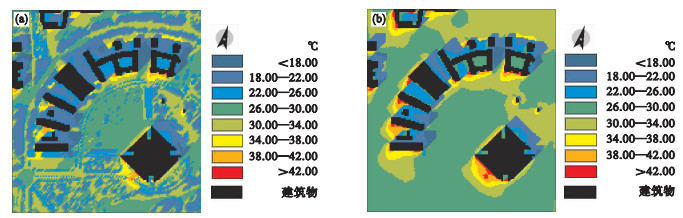

图7

参考文献 28

1	沈历都, 龚强, 徐红, 等. 土地扩张对城市边界层风热环境影响的模拟研究——以沈阳市为例[J]. 气象与环境学报, 2018, 34 (6): 64- 74. doi: 10.3969/j.issn.1673-503X.2018.06.007
2	梁涛. 河南农业大学校园绿色空间布局微气候效应模拟研究[D]. 郑州: 河南农业大学, 2017.
3	刘宇霆. 基于微气候的岭南地区高密度大学校园外部空间舒适度研究[D]. 广州: 华南理工大学, 2018.
4	Bruse M , Fleer H . Simulating surface-plant-air interactions inside urban environments with a three-dimensional numerical model[J]. Environmental Modelling and Software, 1998, 13 (3/4): 373- 384.
5	Huttner S. Further development and application of the 3D microclimate simulation ENVI-met[D]. Mainz: Johannes Gutenberg-Universität Mainz, 2012.
6	Erell E , Pearlmutter D , Boneh D , et al. Effect of high-albedo materials on pedestrian heat stress in urban street canyons[J]. Urban Climate, 2014, 10 (2): 367- 386.
7	Ali-Toudert F , Mayer H . Numerical study on the effects of aspect ratio and orientation of an urban street canyon on outdoor thermal comfort in hot and dry climate[J]. Building and Environment, 2006, 41 (2): 94- 108. doi: 10.1016/j.buildenv.2005.01.013
8	Samaali M , Courault D , Bruse M , et al. Analysis of a 3D boundary layer model at local scale: validation on soybean surface radiative measurements[J]. Atmospheric Research, 2007, 85 (2): 183- 198. doi: 10.1016/j.atmosres.2006.12.005
9	Taleghani M , Kleerekoper L , Tenpierik M , et al. Outdoor thermal comfort within five different urban forms in the Netherlands[J]. Building and Environment, 2015, 83, 65- 78. doi: 10.1016/j.buildenv.2014.03.014
10	祝善友, 高牧原, 陈亭, 等. 基于ENVI-met模式的城市近地表气温模拟与分析——以南京市部分区域为例[J]. 气候与环境研究, 2017, 22 (4): 499- 507.
11	Zölch N T , Rahman M A , Pfleiderer E , et al. Designing public squares with green infrastructure to optimize human thermal comfort[J]. Building and Environment, 2019, 149, 640- 654. doi: 10.1016/j.buildenv.2018.12.051
12	杨小山, 赵立华. 城市风环境模拟: ENVI-met与MISKAM模型对比[J]. 环境科学与技术, 2016, 39 (8): 16- 21.
13	Salata F , Golasi I , Vollaro R D L , et al. Urban microclimate and outdoor thermal comfort: A proper procedure to fit ENVI-met simulation outputs to experimental data[J]. Sustainable Cities and Society, 2016, 26, 318- 343. doi: 10.1016/j.scs.2016.07.005
14	Acero J A , Herranz-Pascual K . A comparison of thermal comfort conditions in four urban spaces by means of measurements and modelling techniques[J]. Building and Environment, 2015, 93 (2): 245- 257.
15	Morakinyo T E , Dahanayake K W D K C , Adegun O B , et al. Modelling the effect of tree-shading on summer indoor and outdoor thermal condition of two similar buildings in a Nigerian university[J]. Energy and Buildings, 2016, 130, 721- 732. doi: 10.1016/j.enbuild.2016.08.087
16	Höppe P . The physiological equivalent temperature-A universal index for the biometeorological assessment of the thermal environment[J]. International Journal of Biometeorology, 1999, 43, 71- 75. doi: 10.1007/s004840050118
17	Höppe P . Different aspects of assessing indoor and outdoor thermal comfort[J]. Energy and Buildings, 2002, 34 (6): 661- 665. doi: 10.1016/S0378-7788(02)00017-8
18	Matzarakis A, Amelung B. Physiological equivalent temperature as indicator for impacts of climate change on thermal comfort of humans[M]//Thomson M C, Garia-Herrera R, Beniston M. Seasonal Forecasts, Climatic Change and Human Health, Dordrecht: Springer, 2008: 161-172.
19	Tsoka S , Tsikaloudaki A , Theodosiou T . Analyzing the ENVI-met microclimate model's performance and assessing cool materials and urban vegetation applications-A review[J]. Sustainable Cities and Society, 2018, 43, 55- 76. doi: 10.1016/j.scs.2018.08.009
20	高淑新, 宋晓巍, 李琳琳, 等. CLIGEN天气发生器在中国东北三省模拟温度的适用性评价[J]. 气象与环境学报, 2019, 35 (4): 77- 84. doi: 10.3969/j.issn.1673-503X.2019.04.011
21	王婷, 陈小芮, 章家恩, 等. 不同绿化改造方案对小区微气候环境影响的ENVI-met模拟研究[J]. 华南农业大学学报, 2019, 40 (4): 61- 68.
22	劳钊明, 李颖敏, 邓雪娇, 等. 基于ENVI-met的中山市街区室外热环境数值模拟[J]. 中国环境科学, 2017, 37 (9): 3523- 3531. doi: 10.3969/j.issn.1000-6923.2017.09.040
23	秦文翠, 胡聃, 李元征, 等. 基于ENVI-met的北京典型住宅区微气候数值模拟分析[J]. 气象与环境学报, 2015, 31 (3): 56- 62.
24	占龙飞, 束炯, 陈亮. 行列式街区风场和污染物浓度场分布特征[J]. 气象与环境学报, 2017, 33 (5): 61- 67. doi: 10.3969/j.issn.1673-503X.2017.05.008
25	林满, 王宝民, 刘辉志. 广州典型小区微气候特征观测与数值模拟研究[J]. 中山大学学报: 自然科学版, 2015, 54 (1): 124- 129.
26	Lin T P , Matzarakis A . Tourism climate and thermal comfort in Sun Moon Lake, Taiwan[J]. International Journal of Biometeorology, 2008, 52, 281- 290. doi: 10.1007/s00484-007-0122-7
27	Lin T P . Thermal perception, adaptation and attendance in a public square in hot and humid regions[J]. Building and Environment, 2009, 44 (10): 2017- 2026. doi: 10.1016/j.buildenv.2009.02.004
28	Coccolo S , Kämpf J , Scartezzini J L , et al. Outdoor human comfort and thermal stress: A comprehensive review on models and standards[J]. Urban Climate, 2016, 18, 33- 57. doi: 10.1016/j.uclim.2016.08.004

编号	测点位置	网格点	遮阴情况	下垫面	测试参数
1	人行道	(12, 72)	部分	混凝土	T_a、RH、WS
2	榕树下	(39, 114)	有	草地	T_a、RH、WS
3	灌木草地混合区	(82, 130)	部分	草地	T_a、RH、WS
4	石头路	(58, 71)	无	石头	T_a、RH、WS
5	林荫道	(66, 44)	有	灰色地砖	T_a、RH、WS
6	公园小路	(65, 19)	部分	透水砖	T_a、RH、WS
7	平台(邻水)	(75, 4)	无	灰色地砖	T_a、RH、WS
8	停车场	(86, 21)	部分	混凝土	T_a、RH、WS
9	图书馆广场	(87, 61)	无	灰色地砖	T_a、RH、WS
10	草坪	(83, 81)	无	草地	T_a、RH、WS
11	凉亭(邻水)	(128, 77)	部分	灰色地砖	T_a、RH、WS
12	桥面(邻水)	(131, 63)	无	混凝土	T_a、RH、WS
