基于FY3/MERSI数据的辽宁省植被指数重建及时空变化分析

doi:10.3969/j.issn.1673-503X.2022.01.009

Abstract

Abstract:

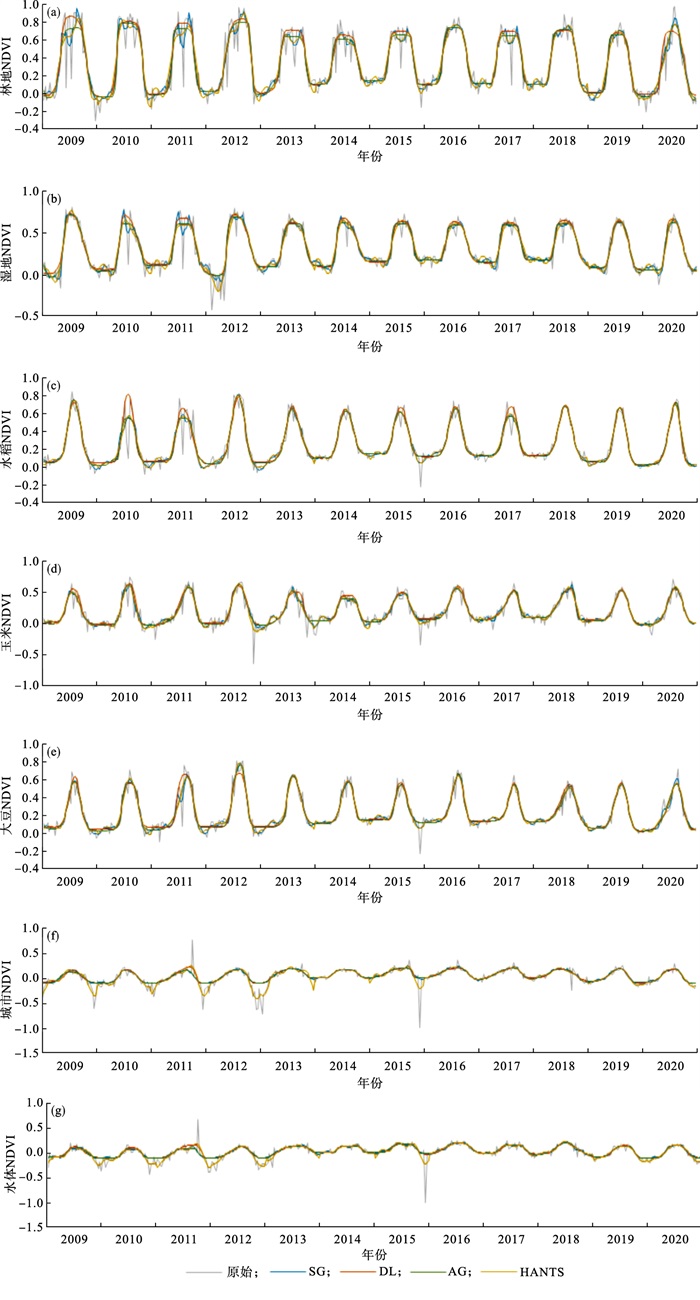

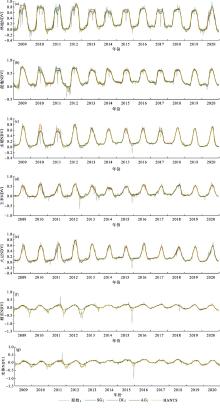

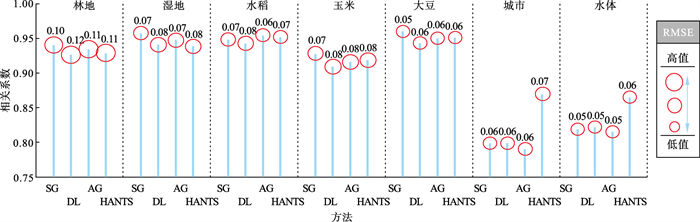

To establish a long-term normalized difference vegetation index (NDVI) data set with the FY-3 series of Chinese meteorological satellites, four filtering and function fitting methods were used to quantitatively analyze the results from reconstructed data on seven types of ground features including forest land, wetland, waterbody, urban, rice, soybean, and corn.Determination for the best data reconstruction method and spatial-temporal variation analysis on the vegetation indices in Liaoning Province was further conducted.The four methods including Asymmetric Gaussian function (AG), Savitzky-Golay filtering (SG), Double Logistic function (DL), and Harmonic Analysis of Time Series (HANTS) show more effective denoising abilities.The SG method was more sensitive to noise overall, whereas the HANTS method was highly affected by noise in the low-value areas.The AG and DL methods had better smoothing effects, while the peak value of the DL method was closer to the original peak value.In areas with high vegetation coverage and seasonal crops, the SG method had the highest correlation coefficients (>0.93) and the lowest root mean square errors (< 0.1).In areas with a low vegetation index, such as cities and water bodies, the HANTS method had the highest correlation coefficient of 0.87, but the root mean square errors of all four methods were around 0.06 with little discrepancies.Considering the curve and quantitative analysis comprehensively, the SG method was selected to reconstruct the vegetation index data set of Liaoning Province.The spatial variations of vegetation indices were consistent with the vegetation types of the underlying surface.The vegetation indices of forest land in the eastern mountainous areas were the highest with values of over 0.75.During 2009-2020, the annual average NDVI values in Liaoning Province experience fluctuation, and there were differences among the variations of vegetation indices for different ground features.The variations for water bodies and cities were relatively small, whereas those of the dry field crops (e.g.maize and soybeans) were a bit larger due to the influence of drought years.The vegetation indices of the main grain crops in Liaoning Province appeared a single-peak variation throughout each year, reflecting the one-year cooked pattern, and reached the maximum value in August.

Key words: FY3/MERSI, Normalized difference vegetation index, Data reconstruction

CLC Number:

TP79

Rui FENG,Rui-peng JI,Jin-wen WU,Wen-ying YU,Dan LIU,Ni-na CHEN,Ying WANG,Yu-shu ZHANG. Reconstruction and spatial-temporal variation analysis of the vegetation indices in Liaoning province based on FY3/MERSI data[J]. Journal of Meteorology and Environment, 2022, 38(1): 65-73.

Figures/Tables 8

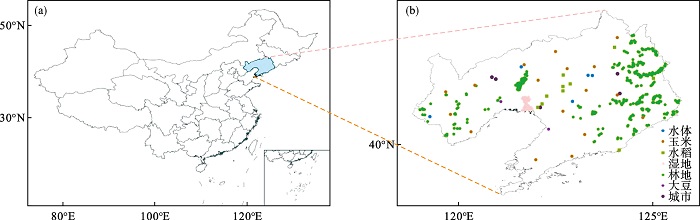

Fig.1

Table 1

Table 2

Fig.2

Fig.3

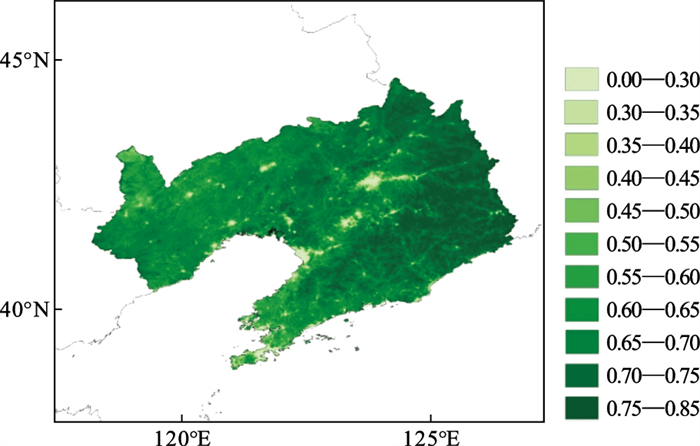

Fig.4

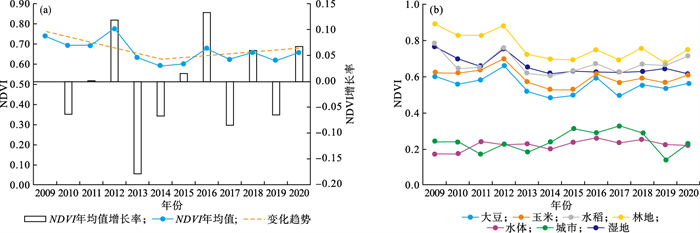

Fig.5

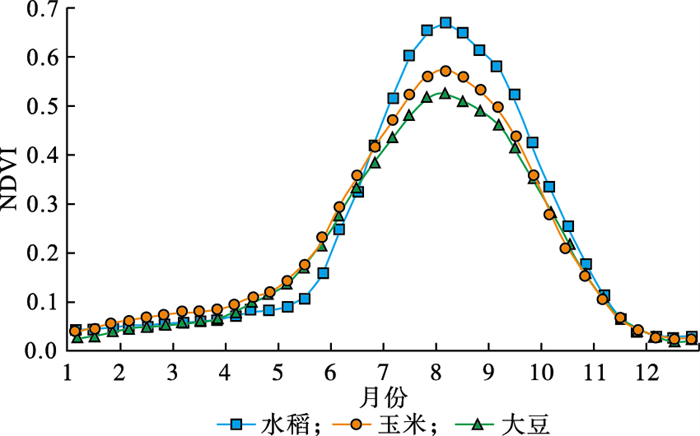

Fig.6

References 40

1	冯兴兴, 王学凤, 阳辉, 等. 辽宁省春玉米生产水足迹的时空变化研究[J]. 中国水利水电科学研究院学报, 2020, 18 (6): 447- 454.
2	张亮, 丁明军, 张华敏, 等. 1982-2015年长江流域植被覆盖度时空变化分析[J]. 自然资源学报, 2018, 33 (12): 2084- 2097.
3	冯锐, 张玉书, 武晋雯, 等. 基于多光谱和高光谱的干旱遥感监测研究进展[J]. 灾害学, 2019, 34 (1): 162- 166. doi: 10.3969/j.issn.1000-811X.2019.01.030
4	Kuchler P C , Bégué A , Simõs M , et al. Assessing the optimal preprocessing steps of MODIS time series to map cropping systems in Mato Grosso, Brazil[J]. International Journal of Applied Earth Observation and Geoinformation, 2020, 92, 102150. doi: 10.1016/j.jag.2020.102150
5	Werner J P S , De M Oliveira S R , Esquerdo J C D M . Mapping cotton fields using data mining and MODIS time-series[J]. International Journal of Remote Sensing, 2020, 41 (7): 2457- 2476. doi: 10.1080/01431161.2019.1693072
6	Páscoa P , Gouveia C M , Kurz-Besson C . A simple method to identify potential groundwater-dependent vegetation using NDVI MODIS[J]. Forests, 2020, 11 (2): 147. doi: 10.3390/f11020147
7	程琳琳, 李玉虎, 孙海元, 等. 京津冀MODIS长时序增强型植被指数拟合重建方法适用性研究[J]. 农业工程学报, 2019, 35 (11): 148- 158. doi: 10.11975/j.issn.1002-6819.2019.11.017
8	Chen J , Jönsson P , Tamura M , et al. A simple method for reconstructing a high-quality NDVI time-series data set based on the Savitzky-Golay filter[J]. Remote Sensing of Environment, 2004, 91 (3/4): 332- 344.
9	Sellers P J , Tucker C J , Collatz G J , et al. A revised land surface parameterization(SiB2)for atmospheric GCMs.Part II: the generation of global fields of terrestrial biophysical parameters from satellite data[J]. Journal of Climate, 1996, 9 (4): 706- 737. doi: 10.1175/1520-0442(1996)009<0706:ARLSPF>2.0.CO;2
10	Ma M G , Veroustraete F . Reconstructing pathfinder AVHRR Land NDVI time-series data for the northwest of China[J]. Advances in Space Research, 2006, 37 (4): 835- 840. doi: 10.1016/j.asr.2005.08.037
11	Roerink G J , Menenti M , Verhoef W . Reconstructing cloudfree NDVI composites using Fourier analysis of time series[J]. International Journal of Remote Sensing, 2000, 21 (9): 1911- 1917. doi: 10.1080/014311600209814
12	Bradley B A , Jacob R W , Hermance J F , et al. A curve fitting procedure to derive inter-annual phenologies from time series of noisy satellite NDVI data[J]. Remote Sensing of Environment, 2007, 106 (2): 137- 145. doi: 10.1016/j.rse.2006.08.002
13	Jonsson P , Eklundh L . Seasonality extraction by function fitting to time-series of satellite sensor data[J]. IEEE Transactions on Geoscience and Remote Sensing, 2002, 40 (8): 1824- 1832. doi: 10.1109/TGRS.2002.802519
14	Beck P S A , Atzberger C , HØgda K A , et al. Improved monitoring of vegetation dynamics at very high latitudes: a new method using MODIS NDVI[J]. Remote Sensing of Environment, 2006, 100 (3): 321- 334. doi: 10.1016/j.rse.2005.10.021
15	耿丽英, 马明国. 长时间序列NDVI数据重建方法比较研究进展[J]. 遥感技术与应用, 2014, 29 (2): 362- 368.
16	杨军, 董超华, 卢乃锰, 等. 中国新一代极轨气象卫星——风云三号[J]. 气象学报, 2009, 67 (4): 501- 509.
17	冯锐, 于文颖, 纪瑞鹏, 等. FY3B/MERSI数据的湖泊湿地面积提取对比分析[J]. 测绘科学, 2017, 42 (7): 147- 152.
18	朱爱军, 胡秀清, 林曼筠, 等. 风云三号D气象卫星全球数据获取方法及数据分发[J]. 海洋气象学报, 2018, 38 (3): 1- 10.
19	刘丹, 冯锐, 于成龙, 等. 基于植被指数的春玉米干旱响应遥感监测[J]. 农业工程学报, 2019, 35 (20): 152- 161. doi: 10.11975/j.issn.1002-6819.2019.20.019
20	顾娟, 李新, 黄春林. NDVI时间序列数据集重建方法述评[J]. 遥感技术与应用, 2006, 21 (4): 391- 395. doi: 10.3969/j.issn.1004-0323.2006.04.024
21	杨刚. 遥感数据时域滤波与重建的谐波分析扩展方法研究[D]. 武汉: 武汉大学, 2016.
22	侯东, 潘耀忠, 张锦水, 等. 农区MODIS植被指数时间序列数据重建[J]. 农业工程学报, 2010, 26 (S1): 206- 212.
23	魏瑞琪, 李林峰, 仙巍, 等. 利用TIMESAT软件和时间序列卫星影像提取新疆石河子棉花种植区域[J]. 湖北农业科学, 2018, 57 (4): 105- 112.
24	刘倩楠, 岳彩荣, 欧阳志云, 等. 基于MODIS-NDVI时序数据的重庆市植被变化研究[J]. 测绘与空间地理信息, 2012, 35 (3): 99- 102. doi: 10.3969/j.issn.1672-5867.2012.03.030
25	朱慧. 重庆地区NDVI时间序列重建研究[D]. 重庆: 重庆师范大学, 2017.
26	李杭燕, 颉耀文, 马明国. 时序NDVI数据集重建方法评价与实例研究[J]. 遥感技术与应用, 2009, 24 (5): 596- 602.
27	宋春桥, 游松财, 柯灵红, 等. 藏北地区三种时序NDVI重建方法与应用分析[J]. 地球信息科学学报, 2011, 13 (1): 133- 143.
28	张晗, 任志远. 多种时序NDVI重建方法比较与应用分析[J]. 中国农业科学, 2014, 47 (15): 2998- 3008. doi: 10.3864/j.issn.0578-1752.2014.15.010
29	李晶, 王婉昭, 刘东明, 等. 2017年辽宁省春夏季精细化气象干旱监测评估[J]. 气象与环境学报, 2019, 35 (3): 100- 105. doi: 10.3969/j.issn.1673-503X.2019.03.013
30	马永忠, 黄英华, 刁军, 等. 辽西地区降水农业满足度与干旱发生规律分析[J]. 气象与环境学报, 2016, 32 (5): 131- 138. doi: 10.3969/j.issn.1673-503X.2016.05.018
31	林毅, 李倩, 王宏博, 等. 干旱条件下春玉米高光谱特征及土壤含水量反演[J]. 生态学杂志, 2016, 35 (5): 1323- 1329.
32	李军, 朱慧. 重庆地区MODIS/NDVI时间序列数据重建研究[J]. 地理科学, 2017, 37 (3): 437- 444.
33	李晶, 邰文飞, 秦元萍, 等. 归一化植被指数时序数据拟合算法对比分析[J]. 中国矿业, 2016, 25 (S2): 317- 323.
34	宋春桥, 柯灵红, 游松财, 等. 基于TIMESAT的3种时序NDVI拟合方法比较研究——以藏北草地为例[J]. 遥感技术与应用, 2011, 26 (2): 147- 155.
35	王乾坤, 于信芳, 舒清态, 等. MODIS EVI时序数据重建方法及拟合分析[J]. 地球信息科学学报, 2015, 17 (6): 732- 741.
36	卫炜, 吴文斌, 李正国, 等. 时间序列植被指数重构方法比对研究[J]. 中国农业资源与区划, 2014, 35 (1): 34- 43.
37	邹明亮, 周妍妍, 曾建军, 等. 基于HANTS算法的疏勒河流域荒漠化时空动态监测[J]. 西北师范大学学报: 自然科学版, 2018, 54 (2): 88- 94.
38	王玮, 郭铌, 沙莎, 等. 我国西北地区东部时间序列NDVI数据集重建方法比较研究[J]. 草业学报, 2016, 25 (8): 1- 13.
39	国志兴, 王宗明, 宋开山, 等. 1982-2003年东北地区植被覆盖变化特征分析[J]. 西北植物学报, 2008, 28 (1): 155- 163.
40	孙立双, 马运涛, 毕天平, 等. 辽宁地区不同地表覆盖类型EVI和NDVI特征[J]. 沈阳建筑大学学报: 自然科学版, 2013, 29 (6): 1024- 1029.

卫星	通道编号	中心波长/μm	光谱带宽/nm	空间分辨率/m	动态范围/(%)
A-C	3	0.650	50	250	100
A-C	4	0.865	50	250	100
D	3	0.650	50	250	90
D	4	0.865	50	250	90

方法	有效值域	尖峰方法	尖峰值	季节	滑动窗口	迭代次数	频率数	相位偏移
SG	-0.1~1.0	1	2	1	5	3	-	-
DL	-0.1~1.0	1	2	1	-	2	-	-
AG	-0.1~1.0	1	2	1	-	2	-	-
HANTS	-0.1~1.0	-	-	-	-	-	5	0
