贵州安顺市PM2.5气象输送条件及贡献源空间分布

doi:10.3969/j.issn.1673-503X.2022.02.007

Abstract

Abstract:

Using air pollutant data and meteorological data from Anshun, Guizhou province, the characteristics of air quality and pollutants from 2015 to 2019 in Anshun were analyzed.Using HYSPLIT backward trajectory model, along with GDAS data and PM_2.5 concentration data, seasonal transport pathways and pollution trajectories were analyzed as well.The potential source contribution function (PSCF) and concentration-weighted trajectory (CWT) were applied to evaluate the vertical and horizontal variations of transport pathways in all days with PM_2.5 polluted (i.e., concentrations above 75 μg·m^-3).The results show that PM_2.5 was the major pollutant in the urban area of Anshun and air transport accounted for a large proportion for this in winter, with the major pathways to the northeast and south of Guizhou province.Polluted airmass from the northeast direction led to PM_2.5 pollution, during which the tracks were mainly distributed at the height of 880-980 hPa.The areas with high potential source values were mainly concentrated over the whole area of Guiyang, Bijie Zhijin County, Qianxi County, Jinsha County, etc., whereas the areas with high contribution values were mainly concentrated in Ziyun County, Zhenning County, Bijie Zhijin County, Dafang County, etc.

Key words: Backward trajectory, Clustering analysis, Ttransport pathway, Potential source contribution

CLC Number:

X513

Qing CAO, Xiao-ping GU, Chi-peng ZHANG, Zhen-hong CHEN, Zhe-hong WU. Meteorological transport conditions and spatial variations of contribution source for PM_2.5 in Anshun of Guizhou province[J]. Journal of Meteorology and Environment, 2022, 38(2): 55-62.

Figures/Tables 7

Table 1

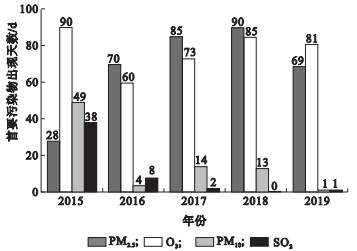

Fig.1

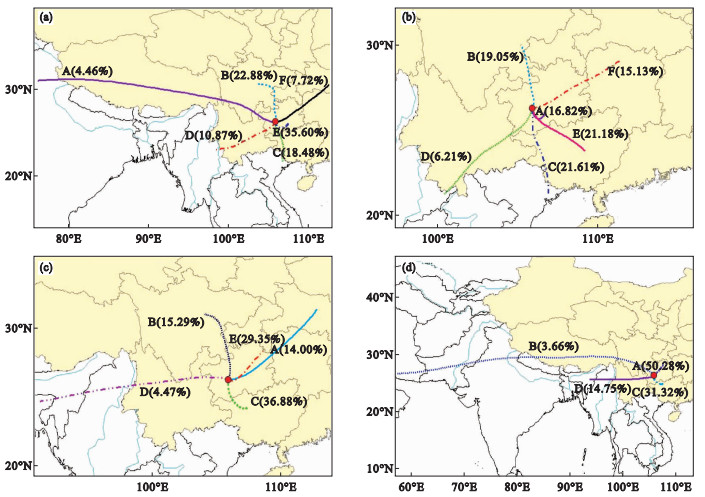

Fig.2

Table 2

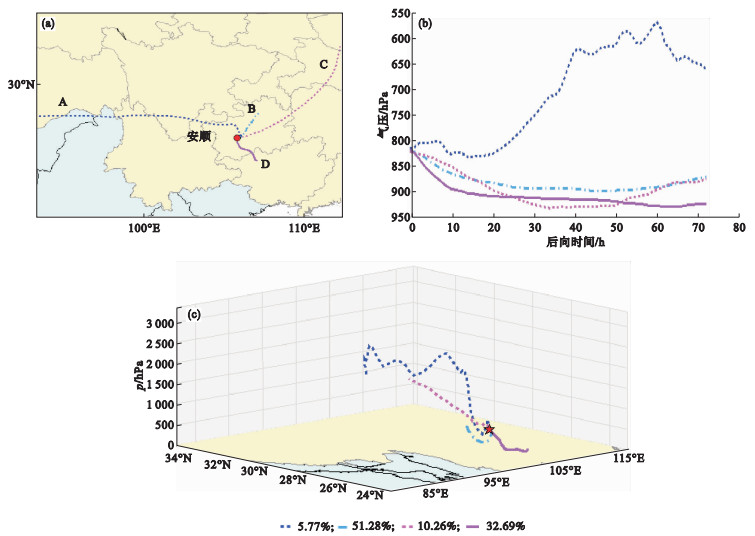

Fig.3

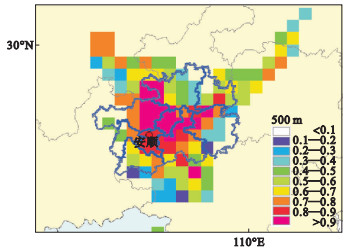

Fig.4

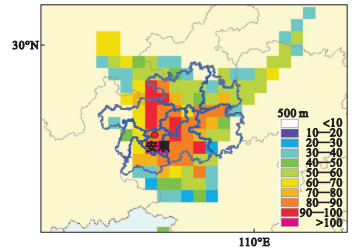

Fig.5

References 30

1	李连喜. 大气污染的危害性分析以及防治措施[J]. 中国科技纵横, 2014, (7): 3. doi: 10.3969/j.issn.1671-2064.2014.07.003
2	张志刚, 高庆先, 韩雪琴, 等. 中国华北区域城市间污染物输送研究[J]. 环境科学研究, 2004, 17 (1): 14- 20. doi: 10.3321/j.issn:1001-6929.2004.01.003
3	Kim B G , Han J S , Park S U . Transport SO₂ and aerosol over the Yellow Sea[J]. Atmospheric Environment, 2001, 35 (4): 727- 737. doi: 10.1016/S1352-2310(00)00344-7
4	王秀玲, 花家嘉, 李轩, 等. 2015-2017年唐山市PM_2.5重污染生消气象条件分析[J]. 气象与环境学报, 2020, 36 (4): 45- 51. doi: 10.3969/j.issn.1673-503X.2020.04.006
5	Wang Y Q , Zhang X Y , Arimoto R . The contribution from distant dust sources to the atmospheric particulate matter loadings at XiAn, China during spring[J]. Science of the Total Environment, 2006, 368 (2/3): 875- 883.
6	Xu X , Akhtar U S . Identification of potential regional sources of atmospheric total gaseous mercury in Windsor, Ontario, Canada using hybrid receptor modeling[J]. Atmospheric Chemistry and Physics, 2010, 10 (15): 7073- 7083. doi: 10.5194/acp-10-7073-2010
7	祝禄祺, 仝纪龙, 潘峰, 等. 基于HYSPLIT后向轨迹模式判断河谷型城市大气污染物来源[J]. 环境科技, 2019, 32 (5): 43- 47. 43-47, 53 doi: 10.3969/j.issn.1674-4829.2019.05.009
8	Lu Z F , Streets D G , Zhang Q , et al. A novel back-trajectory analysis of the origin of black carbon transported to the Himalayas and Tibetan Plateau during 1996-2010[J]. Geophysical Research Letters, 2012, 39 (1): L011809.
9	Poddubny V , Nagovitsyna E , Antonov K , et al. Estimation of the atmospheric greenhouse gas spatial distribution in the Arctic using a back trajectory model[J]. Mathematical Methods in the Applied Sciences, 2019, 43 (13): 7657- 7663.
10	陈乃华, 胡宝叶, 杨玉香, 等. 基于后向轨迹的平潭大气污染输送来源研究[J]. 环境污染与防治, 2019, 41 (8): 938- 945.
11	周述学, 王兴, 弓中强, 等. 长江三角洲西部地区PM_2.5输送轨迹分类研究[J]. 气象学报, 2017, 75 (6): 996- 1010.
12	罗彪, 刘暄. 基于后向轨迹模式下的合肥市大气污染来源研究[J]. 中国科学技术大学学报, 2019, 49 (4): 321- 328.
13	Liu Y Z , Wang B , Zhu Q Z , et al. Dominant synoptic patterns and their relationships with PM_2.5 pollution in winter over the Beijing-Tianjin-Hebei and Yangtze River delta regions in China[J]. Journal of Meteorological Research, 2019, 33 (4): 765- 776. doi: 10.1007/s13351-019-9007-z
14	钤伟妙, 张艳品, 陈静, 等. 石家庄大气污染物输送通道及污染源区研究[J]. 环境科学学报, 2018, 38 (9): 3438- 3448.
15	李义宇, 杨鸿儒, 王楠, 等. 太原市一次重污染天气过程的成因分析[J]. 气象与环境学报, 2018, 34 (2): 11- 18. doi: 10.3969/j.issn.1673-503X.2018.02.002
16	Rana M M , Khan S M M H . Atmospheric PM in major urban areas of Bangladesh[J]. Asian Journal of Atmospheric Environment, 2020, 14 (1): 47- 61. doi: 10.5572/ajae.2020.14.1.047
17	Shaban K B , Kadri A , Rezk E . Urban air pollution monitoring system with forecasting models[J]. IEEE Sensors Journal, 2016, 16 (8): 2598- 2606. doi: 10.1109/JSEN.2016.2514378
18	Polissar A V , Hopke P K , Paatero P , et al. The aerosol at Barrow, Alaska: long-term trends and source locations[J]. Atmospheric Environment, 1999, 33 (16): 2441- 2458. doi: 10.1016/S1352-2310(98)00423-3
19	Wang Y Q , Zhang X Y , Draxler R R . TrajStat: GIS-based software that uses various trajectory statistical analysis methods to identify potential sources from long-term air pollution measurement data[J]. Environmental Modelling & Software, 2009, 24 (8): 938- 939.
20	Wang Y Q . MeteoInfo: GIS software for meteorological data visualization and analysis[J]. Meteorological Applications, 2014, 21 (2): 360- 368. doi: 10.1002/met.1345
21	Hsu Y K , Holsen T M , Hopke P K . Comparison of hybrid receptor models to locate PCB sources in Chicago[J]. Atmospheric Environment, 2003, 37 (4): 545- 562. doi: 10.1016/S1352-2310(02)00886-5
22	刘群, 钟敏文, 赵晓韵, 等. 贵阳市近地面臭氧浓度变化及时空分布特征[J]. 环保科技, 2019, 25 (5): 15- 19.
23	吴古会, 张艳梅. 贵州省近10a日最大风特征分析[J]. 中低纬山地气象, 2018, 42 (2): 13- 20. doi: 10.3969/j.issn.1003-6598.2018.02.003
24	赵晨曦, 王玉杰, 王云琦, 等. 细颗粒物PM_2.5与植被关系的研究综述[J]. 生态学杂志, 2013, 32 (8): 2203- 2210.
25	杨栋, 朱佳敏, 姚日升, 等. 宁波地区空气质量及大气自净能力海陆差异对比[J]. 气象与环境学报, 2019, 35 (3): 52- 59. doi: 10.3969/j.issn.1673-503X.2019.03.007
26	Mcdonald A G , Bealey W J , Fowler D , et al. Quantifying the effect of urban tree planting on concentrations and depositions of PM₁₀ in two UK conurbations[J]. Atmospheric Environment, 2007, 41 (38): 8455- 8467. doi: 10.1016/j.atmosenv.2007.07.025
27	李树岭, 花丛, 赵玲, 等. 哈尔滨秋季一次持续性重污染过程分析[J]. 气象与环境学报, 2019, 35 (4): 25- 32.
28	杨磊, 陈传雷, 曹世腾, 等. 2015年11月沈阳地区一次PM_2.5重污染过程综合分析[J]. 气象与环境学报, 2019, 35 (3): 37- 44.
29	Mircea M , Stefan S , Fuzzi S . Precipitation scavenging coefficient: influence of measured aerosol and raindrop size distributions[J]. Atmospheric Environment, 2000, 34 (29/30): 5169- 5174.
30	张滢滢, 陈明, 陈丽英. 海口市重污染天气潜在源分析研究[J]. 气象与环境学报, 2019, 35 (2): 107- 111.

污染物	年份	日均值最小值	日均值最大值	平均值	标准偏差	国家二级标准	超标天数/d
	2015	7.0	195.0	36.38	26.90		3
	2016	4.0	154.0	22.30	18.56		1
SO₂	2017	2.0	119.0	21.08	15.99	150	0
	2018	2.0	68.0	17.26	12.32		0
	2019	4.0	92.0	15.23	11.64		0
	2015	3.0	44.0	14.47	7.83		0
	2016	4.0	50.0	15.79	6.74		0
NO₂	2017	5.0	44.0	15.09	6.99	80	0
	2018	4.0	36.0	14.65	6.73		0
	2019	3.0	45.0	13.0	6.07		0
	2015	12.0	280.0	49.45	27.39		2
	2016	6.0	132.0	38.11	19.71		0
PM₁₀	2017	9.0	182.0	44.73	30.14	150	6
	2018	7.0	146.0	46.95	27.78		0
	2019	6.0	108.0	37.70	19.49		0
	2015	8.0	174.0	29.57	16.43		5
	2016	4.0	98.0	26.93	14.94		3
PM_2.5	2017	4.0	136.0	30.43	20.83	75	16
	2018	4.0	105.0	32.29	19.44		14
	2019	4.0	83.0	28.42	15.44		3
	2015	0.2	2.2	0.66	0.35		0
	2016	0.3	1.5	0.67	0.23		0
CO	2017	0.3	1.2	0.61	0.15	4	0
	2018	0.4	1.2	0.68	0.19		0
	2019	0.2	1.3	0.61	0.21		0
	2015	3.0	178.0	82.24	35.40		5
	2016	11.0	148.0	78.85	26.62		0
臭氧8 h滑动均值	2017	13.0	154.0	78.31	29.73	160	0
	2018	8.0	165.0	82.84	32.64		4
	2019	18.0	180.0	82.47	32.94		5

季节	轨迹聚类类型	主要途径区域	轨迹数/个	所有轨迹出现频率/(%)	平均浓度/(μg·m^-3)	轨迹条数	污染轨迹统计平均浓度/(μg·m^-3)	本类占比/(%)
	A	印度北部、西藏(由西向东输送)、四川南部	82	4.46	33.11	0	0.00	0.00
	B	四川东南部	421	22.88	27.33	5	99.00	1.19
	C	广西西部	340	18.48	37.44	2	90.00	0.59
春季	D	云南(由西南向东北输送)	200	10.87	35.57	0	0.00	0.00
	E	贵州东南部	655	35.60	31.06	9	79.67	1.37
	F	湖北南部、湖南西北部、贵州东北部	142	7.72	26.94	0	0.00	0.00
	总计	-	1840	100.00	31.65	16	87.00	0.87
	A	贵州东南部	309	16.79	20.95	0	0	0
	B	四川东南部、贵州北部	350	19.02	21.24	0	0	0
	C	广西西部	397	21.58	13.54	0	0	0
夏季	D	云南东南部	114	6.20	13.51	0	0	0
	E	广西西北部	389	21.14	16.61	0	0	0
	F	湖南西北部、贵州东北部	281	15.27	27.65	0	0	0
	总计	-	1840	100.00	19.05	0	0	0
	A	湖北南部、湖南西北部、贵州东北部	238	14.00	38.04	7	80.86	2.94
	B	四川东南部、贵州北部	260	15.29	24.93	0	0.00	0.00
秋季	C	广西西北部、贵州南部	627	36.88	28.96	24	105.17	3.83
	D	印度东北部、缅甸北部、西藏	76	4.47	24.57	0	0.00	0.00
	E	贵州东北部	499	29.35	34.35	25	90.96	5.01
	总计	-	1700	100.00	31.00	56	95.79	3.29
	A	贵州东北部	907	50.31	38.79	56	89.04	6.17
	B	伊朗南部、巴基斯坦、印度北部、西藏	66	3.66	33.91	1	80.00	1.52
冬季	C	广西西北部、贵州南部	564	31.28	36.54	22	87.32	3.90
	D	印度东北部、缅甸北部、云南(由西向东输送)	266	14.75	35.26	12	85.75	4.51
	总计	-	1803	100.00	37.38	91	88.09	5.05
