天津市短时暴雨雨型时空分异及其对城市内涝的影响

doi:10.3969/j.issn.1673-503X.2021.04.016

摘要/Abstract

摘要：

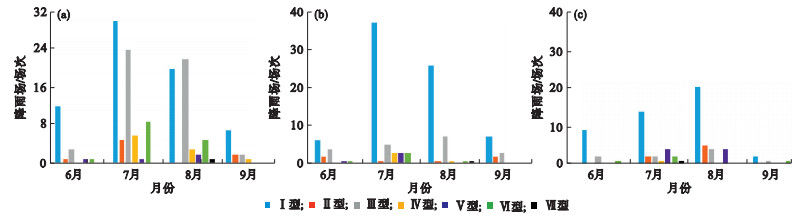

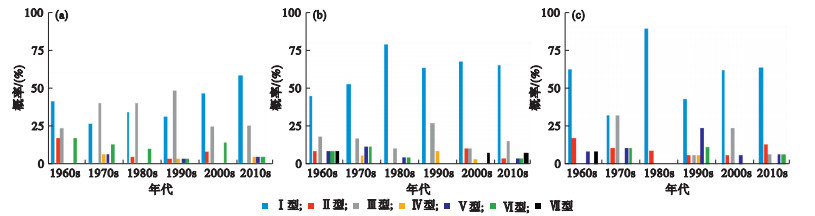

利用天津市1961-2018年分钟级降水数据，统计了天津地区短时暴雨过程，结合模糊识别法对暴雨过程进行分类，分析了暴雨雨型的时空分布特征，基于天津城市暴雨内涝数值模型，评估了不同雨型对内涝积水总量的影响。结果表明：近58 a天津地区短时暴雨雨型以单峰型（Ⅰ型、Ⅱ型和Ⅲ型）为主，其中各年代60 min暴雨雨型以Ⅰ型、Ⅲ型为主，120 min和180 min暴雨雨型以Ⅰ型为主导。短时暴雨集中出现在7月和8月，暴雨过程均以单峰型为主，60 min暴雨雨型7月以Ⅰ型居多，8月Ⅲ型最多，120 min和180 min暴雨雨型均为Ⅰ型最多。各区短时暴雨雨型均以单峰型居多，双峰型次之，均匀型较少。从各地区主导雨型来看，60 min和180 min暴雨雨型不一，包含Ⅰ型、Ⅲ型和Ⅴ型；120 min暴雨雨型各区一致为Ⅰ型。天津市短时暴雨雨型存在明显的时空分异，且不同雨型影响内涝积水总量的峰值出现时间，其中Ⅰ型的积水总量峰值出现时间早，是城市排水设计重点关注的雨型。工程设计中应充分考虑气候变化和城市化对暴雨过程的影响。

关键词: 短时暴雨雨型, 时空分异, 内涝积水, 单峰型, 模糊识别法

Abstract:

Using the minute-level precipitation data from 1961 to 2018, the short-term rainstorm process in Tianjin was counted, and the rainstorm process was classified with the fuzzy recognition method. The temporal and spatial distribution characteristics of the rainstorm type were analyzed. Based on the urban rainstorm internal waterlogging numerical model of Tianjin, the impacts of different rain patterns on the total amount of waterlogged were assessed. The results showed that in the past 58 years, the short-term rainstorm in the Tianjin area is dominated by unimodal type (type I, type II, and type III), and the 60-minute rainstorm in each period is dominated by type Ⅰ and type Ⅲ. The 120-minute and 180-minute rainstorms are dominated by Type I. Short-term rainstorms occur concentratedly in July and August, and the rainstorm process is dominated by unimodal type. The 60-minute rainstorm type is almost type I in July, and type III is the most in August. Both the 120-min and 180-min rainstorm types are mainly Type I. The short-term rainstorm patterns in each area are mostly unimodal type, following the bimodal type and less the uniform type. From the perspective of dominant rainfall patterns in various regions, the 60-minute and 180-minute rainstorms are different, including type I, type III, and type V. The 120-minute rainstorm type is consistent with type I in all areas. There is obvious spatiotemporal differentiation in short-term rainstorm patterns in Tianjin, and different rain patterns affect the peak occurrence time of the total amount of waterlogging. Among them, the peak time of the total amount of waterlogging of type I appears early, which is the rain type that the urban drainage design focuses on. In summary, the impact of climate change and urbanization on the process of heavy rain should be fully considered in the engineering design.

Key words: Short-duration rainstorm pattern, Spatiotemporal differentiation, Waterlogging, Unimodal type, Fuzzy identification method

中图分类号:

P426.62

曹经福,杨艳娟,郭军,陈靖. 天津市短时暴雨雨型时空分异及其对城市内涝的影响[J]. 气象与环境学报, 2021, 37(4): 114-121.

Jing-fu CAO,Yan-juan YANG,Jun GUO,Jing CHEN. Spatiotemporal differentiation of short-duration rainstorm pattern and its influence on urban waterlogging in Tianjin[J]. Journal of Meteorology and Environment, 2021, 37(4): 114-121.

图/表 12

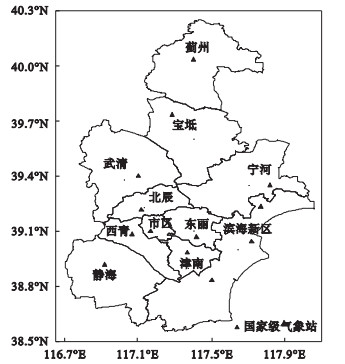

图1

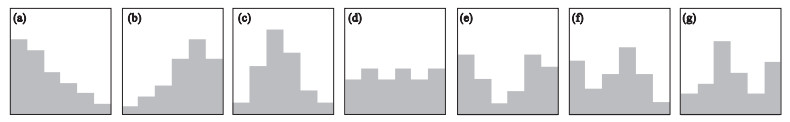

图2

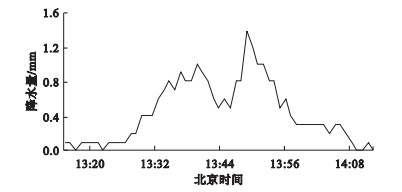

图3

表1

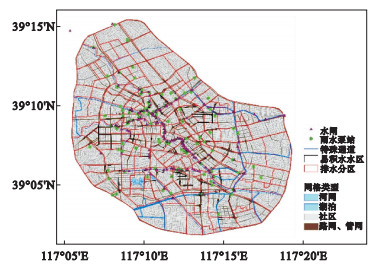

图4

图5

图6

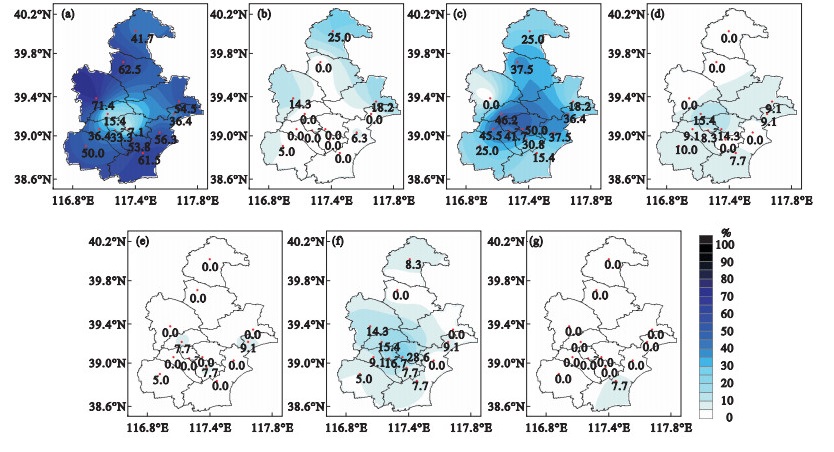

图7

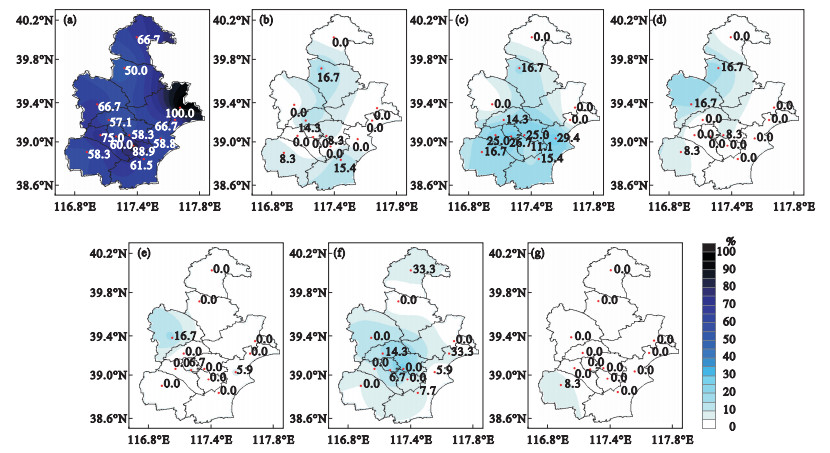

图8

图9

表2

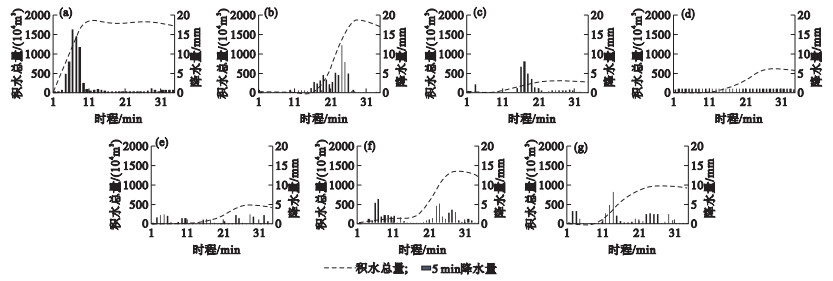

图10

参考文献 37

1	IPCC. IPCC, 2013. Climate change: The physical science basis[M]. Cambridge, United Kingdom and New York, NY, USA: Cambridge University Press, 2013.
2	孔锋, 王铸, 刘凡, 等. 全球、大洲、区域尺度暴雨时空变化格局(1981-2010)[J]. 北京师范大学学报: 自然科学版, 2016, 52 (2): 228- 234.
3	Easterling D R , Events J L , Groismman P Y , et al. Observed variability and trends in extreme climate events[J]. Abrief review Bulletin of the American Meteorological Society, 2000, 81 (3): 417- 425. doi: 10.1175/1520-0477(2000)081<0417:OVATIE>2.3.CO;2
4	Goswami B N , Venugopal V , Sengupta D , et al. Increasing trend of extreme rain events over India in a warming environment[J]. Science, 2006, 314 (5804): 1442- 1445. doi: 10.1126/science.1132027
5	李艳兰, 黄卓, 何洁琳, 等. 1961-2017年广西区域性暴雨过程变化特征[J]. 气象与环境学报, 2020, 36 (1): 51- 57.
6	白莹莹, 张焱, 何泽能, 等. 城市化进程对重庆都市圈降水空间分布的影响[J]. 气象, 2013, 39 (5): 592- 599.
7	Allan R P , Soden B J . Atmospheric warming and the amplification of precipitation extremes[J]. Science, 2008, 321 (5895): 1481- 1484. doi: 10.1126/science.1160787
8	Yao C , Yang S , Qian W H , et al. Regional summer precipitation events in Asia and their changes in the past decades[J]. Journal of Geophysical Research: Atmospheres, 2008, 113 (D17): D17107. doi: 10.1029/2007JD009603
9	Zhang Q , Xiao M Z , P.Singh V , et al. Max-stable based evaluation of impacts of climate indices on extreme precipitation processes across the Poyang Lake basin, China[J]. Global and Planetary Change, 2014, 122, 271- 281. doi: 10.1016/j.gloplacha.2014.09.005
10	Wahl T , Jain S , Bender J , et al. Increasing risk of compound flooding from storm surge and rainfall for major US cities[J]. Nature Climate Change, 2015, 5, 1093- 1097. doi: 10.1038/nclimate2736
11	顾正强, 朱玲, 龚强, 等. 辽宁省降雨变化对海绵城市低影响开发雨水系统建设的影响[J]. 气象与环境学报, 2018, 34 (5): 76- 85. doi: 10.3969/j.issn.1673-503X.2018.05.010
12	许怡, 吴永祥, 王高旭, 等. 伦敦城市洪水风险管理的启示[J]. 水利水电科技进展, 2019, 39 (4): 13- 18, 26.
13	莫洛可夫M B, 施果林Г Г. 雨水道与合流水道[M]. 谢锡爵, 等译. 北京: 建筑工程出版社, 1956.
14	Keifer C J , Chu H H . Synthetic storm pattern for drainage design[J]. Journal of Hydraulics Division, 1957, 83 (4): 1- 25.
15	Chow V T. Frequency analysis of hydrologic data with special application to rainfall intensities[R]. Urbana-Champaign, USA: University of Illinois at Urbana Champaign, College of Engineering. Engineering Experiment Station, 1953.
16	银磊, 陈晓宏, 陈志和, 等. 广州市典型雨量站暴雨雨型研究[J]. 水资源研究, 2013, 2 (6): 409- 414.
17	宋亚娅, 张航泊, 王友林, 等. 模糊识别理论在设计暴雨典型选择中的应用研究[J]. 中国水利水电科学研究院学报, 2016, 14 (2): 110- 114, 121.
18	王彬雁, 赵琳娜, 巩远发, 等. 北京降雨过程分型特征及短历时降雨重现期研究[J]. 暴雨灾害, 2015, 34 (4): 302- 308. doi: 10.3969/j.issn.1004-9045.2015.04.002
19	夏军, 石卫, 王强, 等. 海绵城市建设中若干水文学问题的研讨[J]. 水资源保护, 2017, 33 (1): 1- 8.
20	成丹, 陈正洪. 湖北宜昌市区暴雨雨型的演变特征[J]. 干旱气象, 2017, 35 (2): 225- 231.
21	黄津辉, 王超, 范泽华. 天津市设计暴雨雨型的演变[J]. 水资源保护, 2020, 36 (1): 38- 43.
22	岑国平. 城市雨洪调蓄池计算的设计雨型比较[J]. 西北水资源与水工程, 1993, (2): 30- 35.
23	岑国平, 沈晋, 范荣生. 城市设计暴雨雨型研究[J]. 水科学进展, 1998, 9 (1): 41- 46. doi: 10.3321/j.issn:1001-6791.1998.01.007
24	贾绍凤. 我国城市雨洪管理近期应以防涝达标为重点[J]. 水资源保护, 2017, 33 (2): 13- 15.
25	熊明明, 徐姝, 李明财, 等. 天津地区小时降水特征分析[J]. 暴雨灾害, 2016, 35 (1): 84- 90. doi: 10.3969/j.issn.1004-9045.2016.01.012
26	赵国超, 赵鹏飞, 汪光远. 天津市降雨时空分布特征及预测模型研究[J]. 海河水利, 2019, (4): 41- 43.
27	段丽瑶, 刘爱霞, 史珺. 1918-2010年天津降水指数变化特征[J]. 气候变化研究进展, 2012, 8 (3): 171- 177.
28	郭军, 杨艳娟. 近20年来天津市降水资源的变化特征[J]. 干旱区资源与环境, 2011, 25 (7): 80- 83.
29	王伯民, 吕勇平, 张强. 降水自记纸彩色扫描数字化处理系统[J]. 应用气象学报, 2004, 15 (6): 737- 744. doi: 10.3969/j.issn.1001-7313.2004.06.013
30	彭江华, 黄祖辉. 降水自记纸彩色图形数字化的技术处理[J]. 气象, 2011, 37 (2): 249- 253. doi: 10.3969/j.issn.1001-7313.2011.02.014
31	王敏, 谭向诚. 北京城市暴雨和雨型的研究[J]. 水文, 1994, (3): 1- 6, 64.
32	高绍凤, 陈万隆, 朱超群, 等. 应用气候学[M]. 北京: 气象出版社, 2001: 278
33	段丽瑶, 解以扬, 陈靖, 等. 基于城市内涝仿真模型的天津风暴潮灾害评估[J]. 应用气象学报, 2014, 25 (3): 354- 359.
34	解以扬, 李大鸣, 李培彦, 等. 城市暴雨内涝数学模型的研究与应用[J]. 水科学进展, 2005, 16 (3): 384- 390.
35	解以扬, 韩素芹, 由立宏, 等. 天津市暴雨内涝灾害风险分析[J]. 气象科学, 2004, 24 (3): 342- 349.
36	李大鸣, 胡永文, 王笑, 等. 城市暴雨沥涝数学模型的研究与应用[J]. 长江科学院院报, 2016, 33 (10): 46- 50.
37	陈靖, 李大鸣, 郝莹, 等. 分区层化立体多重天津城市暴雨内涝模型研究[J]. 水动力学研究与进展A辑, 2019, 34 (3): 367- 376.

降水历时/min	降水时长范围/min	暴雨量阈值/mm
60	[45, 75)	17.32
120	[105, 135)	23.98
180	[165, 195)	29.04

雨型	开始日期	开始时间	降水总量/mm	持续时间/min
Ⅰ型	1985-07-09	04:10	65.0	170
Ⅱ型	1964-08-01	15:07	58.5	193
Ⅲ型	2008-08-11	04:37	32.7	176
Ⅳ型	1996-07-27	10:00	34.5	180
Ⅴ型	1991-07-21	12:23	35.2	172
Ⅵ型	1977-07-23	20:09	52.2	190
Ⅶ型	1966-07-29	14:15	45.2	165
