广西“6·13”强降水过程低空急流的作用及其日变化成因

doi:10.3969/j.issn.1673-503X.2024.05.001

摘要/Abstract

摘要：

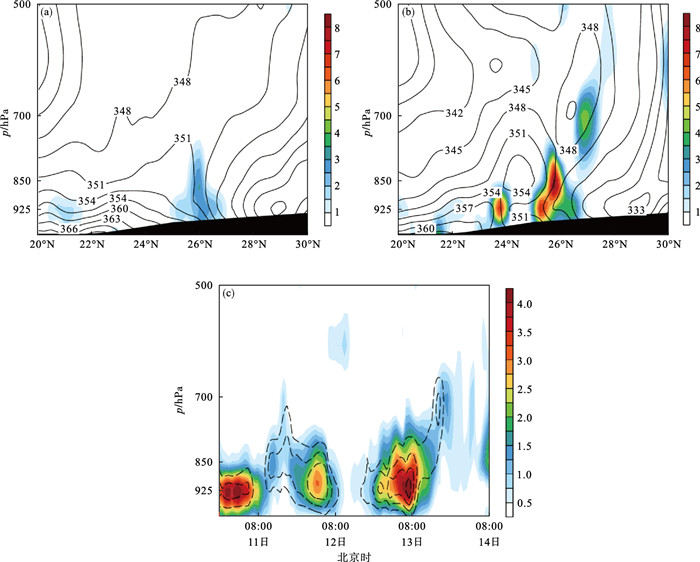

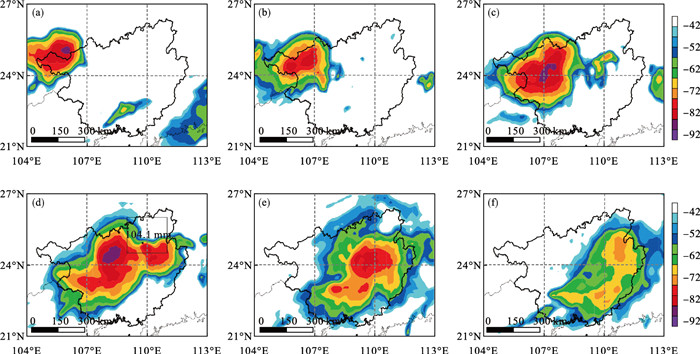

利用实况观测以及ERA5再分析资料, 对2022年广西“6·13”强降水过程进行了分析诊断, 并着重分析了低空急流的作用及其日变化成因。结果表明: 强降水过程受高空槽、低层切变线以及西南低空急流共同影响。低空急流日间减弱而夜间明显增强, 在切变线南侧的急流顶端不断有对流系统发生发展, 造成强降水主要集中于夜间。极端强降水出现在中尺度对流云团合并阶段, 落区位于TBB梯度大值区。夜间低空急流左前方辐合和山脉地形阻挡共同作用使得低层辐合增强, 促进上升运动发展。低空急流夜间增强使得冷暖空气在桂东北一带剧烈交汇, 导致低层水平锋生强迫增强, 有利于降水维持和增强。在低空急流持续暖湿输送下, 大气低层不稳定结构明显增强, 为对流系统以及强降水提供有利的发展维持环境。此外, 夜间低空急流推动水汽在桂东北一带辐合抬升, 与强降水落区具有较好对应。动量收支诊断表明, 惯性振荡是造成低空急流日变化的主要机制。夜间科氏力对非地转风的作用主导了动量变化, 非地转风顺时针旋转为西南风, 与背景风场叠加进而增强了低空急流; 日间湍流摩擦增强, 残差项和平流项共同耗散局地动量。

关键词: 低空急流, 锋生强迫, 动量收支, 惯性振荡

Abstract:

Based on observation data and ERA5 reanalysis data, an analysis and diagnosis of thes "6·13" heavy rainfall process in Guangxi in 2022 were conducted, with a focus on the role of diurnal variation and its cause of low-level jet. The results show that the heavy rainfall process is jointly influenced by the upper level trough, the low-level shear line and the southwest low-level jet. The low-level jet weakens during the day and significantly strengthens at night, with convective systems continuously developing at the top of the jet and the south of the shear line, resulting in heavy rainfall mainly concentrated at night. The extreme heavy rainfall appears during the merging stage of mesoscale convective cloud clusters, located in the large TBB (Top Blackbody Brightness temperature) gradient region. The convergence in the left front of the low-level jet at night and the obstruction of mountain topography together enhance the low-level convergence and promote the development of upward movement. The intensification of low-level jet at night causes the intense convergence of warm and cold air in the northeastern region of Guangxi, resulting in the enhancement of low-level horizontal frontogenesis forcing, which is conducive to the maintenance and intensification of precipitation. Under the continuous warm and humid transport of the low-level jet, the unstable structure in the lower atmosphere is significantly enhanced, which provides a favorable environment for the development and maintenance of convective systems and heavy rainfall. In addition, the low-level jet promotes the water vapor convergence and uplift in the northeastern region of Guangxi at night, which corresponds well with the heavy rainfall area. The diagnosis of momentum balance shows that inertial oscillation is the main mechanism causing the diurnal variation of low-level jet. The Coriolis force at night dominated the momentum change of the geostrophic wind, which rotates clockwise to form the southwest wind and superimposes with the background wind field to strengthen the low-level jet. The daytime turbulent friction is enhanced and the residual and advection terms jointly dissipate local momentum.

Key words: Low-level jet, Frontogenesis force, Momentum balance, Inertial oscillation

中图分类号:

P426.62

覃皓,刘乐,农孟松. 广西“6·13”强降水过程低空急流的作用及其日变化成因[J]. 气象与环境学报, 2024, 40(5): 1-11.

Hao QIN,Le LIU,Mengsong NONG. The role of low-level jet and its cause of diurnal variation during the "6·13" heavy rainfall process in Guangxi[J]. Journal of Meteorology and Environment, 2024, 40(5): 1-11.

图/表 10

图1

图2

图3

图4

图5

图6

图7

图8

图9

图10

参考文献 26

1	杨鹏武, 周德丽, 吉文娟, 等. 云南区域性暴雨过程时空变化特征[J]. 气象与环境学报, 2024, 40 (3): 83- 90. doi: 10.3969/j.issn.1673-503X.2024.03.010
2	曹越, 钤伟妙, 李国翠, 等. 2013—2020年冀中南地区夏季短时强降水精细化分布特征[J]. 气象与环境学报, 2024, 40 (2): 26- 33. doi: 10.3969/j.issn.1673-503X.2024.02.004
3	陈龚梅, 厉瑞孝, 黄海玲, 等. 台风"黑格比"和"利奇马"造成温州机场强降水特征差异及其成因分析[J]. 气象与环境学报, 2024, 40 (1): 9- 16. doi: 10.3969/j.issn.1673-503X.2024.01.002
4	Bonner W D . Climatology of the low level jet[J]. Monthly Weather Review, 1968, 96 (12): 833- 850. doi: 10.1175/1520-0493(1968)096<0833:COTLLJ>2.0.CO;2
5	Jiang Z N , Zhang D L , Xia R D , et al. Diurnal variations of presummer rainfall over southern China[J]. Journal of Climate, 2017, 30 (2): 755- 773. doi: 10.1175/JCLI-D-15-0666.1
6	智协飞, 李佳, 张玲. 双低空急流影响下华南初夏降水日变化的时空分布特征[J]. 大气科学学报, 2022, 45 (3): 444- 455.
7	Du Y , Chen G X . Heavy rainfall associated with double low-level jets over southern China.Part Ⅱ: convection initiation[J]. Monthly Weather Review, 2019, 147 (2): 543- 565. doi: 10.1175/MWR-D-18-0102.1
8	曾智琳, 谌芸, 朱克云. 2017年6月一次华南沿海强降水的对流性特征及热动力机制研究[J]. 大气科学, 2019, 43 (6): 1295- 1312.
9	张端禹, 崔春光, 赵玉春. 2010年前汛期末华南西部和东部暴雨对比分析[J]. 气象与环境学报, 2014, 30 (6): 8- 15.
10	何立富, 陈涛, 孔期. 华南暖区暴雨研究进展[J]. 应用气象学报, 2016, 27 (5): 559- 569.
11	王东阡, 张耀存. 中国东部西南低空急流日变化特征及其机制[J]. 地球物理学报, 2012, 55 (8): 2498- 2507.
12	梁维亮, 屈梅芳, 赖珍权, 等. 广西地区一次强雷暴天气过程雷达特征及环境场分析[J]. 气象与环境学报, 2016, 32 (3): 10- 18. doi: 10.3969/j.issn.1673-503X.2016.03.002
13	Zeng W X , Chen G X , Du Y , et al. Diurnal variations of low-level winds and precipitation response to large-scale circulations during a heavy rainfall event[J]. Monthly Weather Review, 2019, 147 (11): 3981- 4004. doi: 10.1175/MWR-D-19-0131.1
14	Blackadar A K . Boundary layer wind maxima and their significance for the growth of nocturnal inversions[J]. Bulletin of the American Meteorological Society, 1957, 38 (5): 283- 290. doi: 10.1175/1520-0477-38.5.283
15	Dong F , Zhi X F , Zhang L , et al. Diurnal variations of coastal boundary layer jets over the Northern South China Sea and their impacts on diurnal cycle of rainfall over Southern China during the early-summer rainy season[J]. Monthly Weather Review, 2021, 149 (10): 3341- 3363. doi: 10.1175/MWR-D-20-0292.1
16	Hersbach H , Bell B , Berrisford P , et al. The ERA5 global reanalysis[J]. Quarterly Journal of the Royal Meteorological Society, 2020, 146 (730): 1999- 2049. doi: 10.1002/qj.3803
17	Yang S , Gao S T , Lu C G . A generalized frontogenesis function and its application[J]. Advances in Atmospheric Sciences, 2014, 31 (5): 1065- 1078. doi: 10.1007/s00376-014-3228-y
18	Du Y , Zhang Q H , Chen Y L , et al. Numerical simulations of spatial distributions and diurnal variations of low-level jets in China during early summer[J]. Journal of Climate, 2014, 27 (15): 5747- 5767. doi: 10.1175/JCLI-D-13-00571.1
19	张翠艳, 常姝婷, 曲梓祎, 等. 锦州地区强降雪过程低空急流特征分析[J]. 气象与环境学报, 2023, 39 (3): 87- 96. doi: 10.3969/j.issn.1673-503X.2023.03.011
20	王宁, 马梁臣, 霍也. 一次爆发性气旋引发东北地区暴雨成因分析[J]. 气象与环境学报, 2022, 38 (3): 19- 28. doi: 10.3969/j.issn.1673-503X.2022.03.003
21	Parish T R , Oolman L D . On the role of sloping terrain in the forcing of the Great Plains low-level jet[J]. Journal of the Atmospheric Sciences, 2010, 67 (8): 2690- 2699. doi: 10.1175/2010JAS3368.1
22	周静, 郑永骏, 苗春生, 等. 梅雨锋强降水与低空急流日变化的观测分析和数值模拟[J]. 热带气象学报, 2017, 33 (5): 750- 761.
23	Zeng W X , Chen G X , Bai L Q , et al. Multiscale processes of heavy rainfall over East Asia in summer 2020:diurnal cycle in response to synoptic disturbances[J]. Monthly Weather Review, 2022, 150 (6): 1355- 1376.
24	Pan H , Chen G X . Diurnal variations of precipitation over North China regulated by the mountain-plains solenoid and boundary-layer inertial oscillation[J]. Advances in Atmospheric Sciences, 2019, 36 (8): 863- 884. doi: 10.1007/s00376-019-8238-3
25	Du Y , Rotunno R , Zhang Q H . Analysis of WRF-simulated diurnal boundary layer winds in eastern China using a simple 1D model[J]. Journal of the Atmospheric Sciences, 2015, 72 (2): 714- 727. doi: 10.1175/JAS-D-14-0186.1
26	Xue M , Luo X , Zhu K F , et al. The controlling role of boundary layer inertial oscillations in Meiyu frontal precipitation and its diurnal cycles over China[J]. Journal of Geophysical Research: Atmospheres, 2018, 123 (10): 5090- 5115. doi: 10.1029/2018JD028368
