工业园区大气污染过程与气象风场响应关系研究

doi:10.3969/j.issn.1673-503X.2022.01.004

Abstract

Abstract:

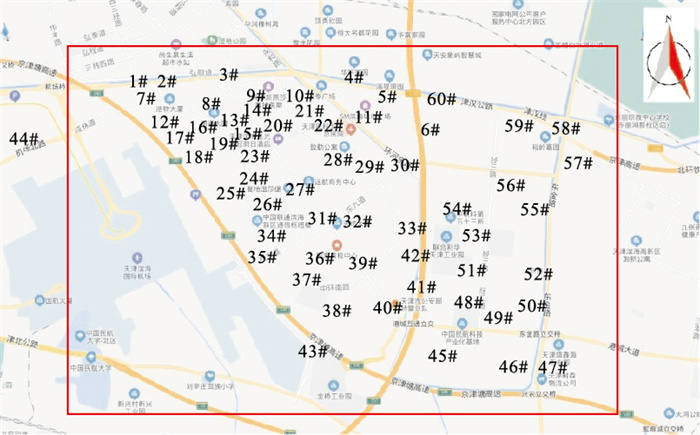

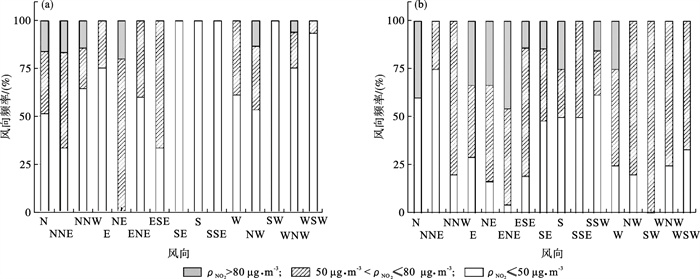

In this study, a grid monitoring system of air pollutants was built in the Tianjin airport industrial zone.Based on the control variable method and Moran's I study, a method system for establishing the relationship between the air pollution process and meteorological wind field response was formed.The results show that the major pollutants in the industrial park are PM_2.5, NO₂, PM₁₀, and O₃.SSW wind, ENE wind, and SE wind have a great influence on the transport of high concentration PM_2.5, NO₂, O₃, and PM₁₀, respectively.In addition to the local emissions, the south-southwest emissions of the airport outside the district have a greater impact on PM_2.5.Road moving sources such as Jinhan highway and Toray Lake road in the east-northeast direction of the outside of the industrial park have a great influence on NO₂.O₃ and PM₁₀ are greatly influenced by the moving sources in the Jinbin highway, Ningjing highway, and Jinbei highway in the southeast direction of the outside of the industrial park and the southeast section of the airport.In terms of the convergence zone of airflow of the inside of the industrial park on September 23, the 1# should reinforce the coordinated controlling of PM_2.5, NO₂, and PM₁₀ and the 2# should focus on the controlling of NO₂ at 09:00 on September 23, 2019.Furthermore, the northwest extension zone of the 3# and the north extension zone of the 5# should pay attention to the controlling of O₃.The central, west, east, and southeast sections of the industrial park should enhance the synergetic controlling of PM_2.5, O₃, and NO₂ at 15:00 on September 23, 2019.14# should enhance the coordinated controlling of PM_2.5 and O₃, while 17# and 18# should focus on controlling PM₁₀ at 21:00 on September 23, 2019.

Key words: Grid monitoring, Industrial park, Meteorological wind field, Response relationship, Coordinated control

CLC Number:

An-ke GUO,Xiao-ge YIN,Zhi-min WANG,Zhi-qiang LI,Zhe LI,Ji ZHANG,Lu CHEN,Hao-yun HUANG. A study on the response relationship between air pollution process and meteorological wind field in an industrial park[J]. Journal of Meteorology and Environment, 2022, 38(1): 23-32.

Figures/Tables 15

Fig.1

Table 1

Table 2

Fig.2

Fig.3

Fig.4

Fig.5

Fig.6

Fig.7

Fig.8

Fig.9

Fig.10

Table 3

Table 4

Table 5

References 26

1	姜澒月, 闫亚琛, 李海蓉. 中国2013年城市大气污染现状及探索性空间数据分析[J]. 安全与环境学报, 2016, 16 (2): 352- 357.
2	谭琼, 庄红, 铁治欣, 等. 基于模糊物元的工业园区空气质量评价模型[J]. 安全与环境学报, 2017, 17 (5): 2019- 2023.
3	陈训来, 范绍佳, 李江南, 等. 香港地区空气污染的典型天气背景形势[J]. 热带气象学报, 2008, 24 (2): 195- 199. doi: 10.3969/j.issn.1004-4965.2008.02.013
4	Ziomas I C , Melas D , Zerefos C S , et al. Forecasting peak pollutant levels from meteorological variables[J]. Atmospheric Environment, 1995, 29 (24): 3703- 3711. doi: 10.1016/1352-2310(95)00131-H
5	王莉莉, 王跃思, 王迎红, 等. 北京夏末秋初不同天气形势对大气污染物浓度的影响[J]. 中国环境科学, 2010, 30 (7): 924- 930.
6	Chen D L . A monthly circulation climatology for Sweden and its application to a winter temperature case study[J]. International Journal of Climatology, 2000, 20 (10): 1067- 1076. doi: 10.1002/1097-0088(200008)20:10<1067::AID-JOC528>3.0.CO;2-Q
7	Grundstrom M , Tang L , Hallquist M , et al. Influence of atmospheric circulation patterns on urban air quality during the winter[J]. Atmospheric Pollution Research, 2015, 6 (2): 278- 285. doi: 10.5094/APR.2015.032
8	Grundström M , Hak C , Chen D , et al. Variation and co-variation of PM₁₀, particle number concentration, NOx and NO₂ in the urban air-Relationships with wind speed, vertical temperature gradient and weather type[J]. Atmospheric Environment, 2015, 120, 317- 327. doi: 10.1016/j.atmosenv.2015.08.057
9	朱蓉, 张存杰, 梅梅. 大气自净能力指数的气候特征与应用研究[J]. 中国环境科学, 2018, 38 (10): 3601- 3610. doi: 10.3969/j.issn.1000-6923.2018.10.001
10	涂小萍, 姚日升, 高爱臻, 等. 浙江北部一次爆发式发展重度大气污染的气象特点和成因[J]. 环境科学学报, 2019, 39 (5): 1443- 1451.
11	于彩霞, 石春娥, 凌新锋, 等. 基于综合观测的中国中东部地区一次严重污染过程分析[J]. 环境科学学报, 2020, 40 (7): 2346- 2355.
12	中华人民共和国环境保护部. 环境空气质量评价技术规范(试行): HJ 663-2013[S]. 北京: 中国环境科学出版社, 2013.
13	中华人民共和国生态环境部. 环境空气气态污染物(SO₂、NO₂、O₃、CO)连续自动监测系统运行和质控技术规范: HJ 818-2018[S]. 北京: 中国环境科学出版社, 2018.
14	中华人民共和国生态环境部. 环境空气颗粒物(PM₁₀和PM_2.5)连续自动监测系统运行和质控技术规范: HJ 817-2018[S]. 北京: 中国环境出版社, 2018.
15	中国气象局. 地面气象观测规范第7部分: 风向和风速观测: QX/T 51-2007[S]. 北京: 中国标准出版社, 2007.
16	中国气象局. 地面气象观测规范第6部分: 空气温度和湿度观测: QX/T 50-2007[S]. 北京: 中国标准出版社, 2007.
17	张松林, 张昆. 空间自相关局部指标Moran指数和G系数研究[J]. 大地测量与地球动力学, 2007, 27 (3): 31- 34.
18	Negreiros J G , Painho M T , Aguilar F J , et al. A comprehensive framework for exploratory spatial data analysis: Moran location and variance scatterplots[J]. International Journal of Digital Earth, 2010, 3 (2): 157- 186. doi: 10.1080/17538940903253898
19	中华人民共和国环境保护部. 环境空气质量指数(AQI)技术规定(试行): HJ 663-2012[S]. 北京: 中国环境科学出版社, 2012.
20	郁珍艳, 高大伟, 李正泉, 等. 低层通风量及逆温条件对浙江省空气质量的影响分析[J]. 环境科学学报, 2020, 40 (9): 3165- 3173.
21	余钟奇, 马井会, 毛卓成, 等. 2017年上海臭氧污染气象条件分析及臭氧污染天气分型研究[J]. 气象与环境学报, 2019, 35 (6): 46- 54. doi: 10.3969/j.issn.1673-503X.2019.06.007
22	陆倩, 王国辉, 付娇, 等. 承德市臭氧污染气象条件预报方法研究[J]. 气象与环境学报, 2019, 35 (6): 67- 76. doi: 10.3969/j.issn.1673-503X.2019.06.009
23	毛卓成, 马井会, 瞿元昊, 等. 2015年上海地区空气质量状况及其与气象条件的关系[J]. 气象与环境学报, 2018, 34 (2): 52- 60. doi: 10.3969/j.issn.1673-503X.2018.02.007
24	杨元琴, 王继志, 张小曳, 等. 2017年1月沈阳和松辽平原地区重污染过程气象条件影响机理分析[J]. 气象与环境学报, 2018, 34 (6): 116- 124. doi: 10.3969/j.issn.1673-503X.2018.06.014
25	郑丽英, 许婷婷, 陈志安, 等. 成都市夏季臭氧污染特征及影响因素[J]. 气象与环境学报, 2019, 35 (5): 78- 84.
26	程念亮, 李云婷, 张大伟, 等. 2014年北京市城区臭氧超标日浓度特征及与气象条件的关系[J]. 环境科学, 2016, 37 (6): 2041- 2051.

集成传感器类型	监测指标	测量范围	分辨率
PM_2.5/PM₁₀传感器(RK-AQM-PM_2.5)	PM_2.5/PM₁₀/(μg·m^-3)	0—1000	0.1
SO₂传感器(RK-AQM-SO₂)	SO₂/(μg·m^-3)	0—2860	2.86
O₃传感器(RK-AQM-O₃)	O₃/(μg·m^-3)	0—1071	2.143
NO₂传感器(RK-AQM-NO₂)	NO₂/(μg·m^-3)	0—513	2.054
CO传感器(RK-AQM-CO)	CO/(mg·m^-3)	0—12.5	0.0125
风向传感器(RK-AQM-A-S23)	风向/°	0—359	1
风速传感器(RK-AQM-A-S23)	风速/(m·s^-1)	0—40	0.1
温度传感器(RK-AQM-A-S24)	温度/℃	-40~80	0.1
相对湿度传感器(RK-AQM-A-S24)	相对湿度/(%)	0—99	0.1

Moran′s I取值	含义
(0, 1]	所有地区的属性值在空间上有正相关性
0	地区随机分布，无空间相关性
[-1, 0)	所有地区的属性值在空间上有负相关性

09时	气流辐合区	Moran′s I值
I(PM_2.5)	1#	0.834
	2#	0.314
	3#	0.332
I(NO₂)	1#	0.823
	2#	0.833
	4#东南延长带	0.510
I(O₃)	3#西北延长带	0.987
	4#与6#西北延长带交汇处	0.456
	5#北向延长带	0.882
I(PM₁₀)	1#	0.834
	2#	0.196
	3#	0.148

15时	气流辐合区	Moran′s I值
I(PM_2.5)	7#	0.942
	8#	0.691
	9#东北延长带	0.168
	10#北向延长带	0.765
	11#南向延长带	0.579
I(NO₂)	7#南向延长带	0.942
I(O₃)	8#西北向延长带	0.562
	9#西向延长带	0.730
	11#西南延长带	0.967
	10#	0.117
I(PM₁₀)	10#北向延长带	0.104

21时	气流辐合区	Moran′s I值
I(PM_2.5)	14#南向延长带	0.952
I(PM_2.5)	19#	0.873
I(NO₂)	14#南向延长带	0.347
	15#东南延长带	0.297
	16#北向延长带	0.417
	18#南向延长带	0.066
I(O₃)	14#东南延长带与18#交汇处	0.905
I(O₃)	16#南向延长带与17#及18#交汇处	0.595
I(PM₁₀)	14#南向延长带	0.334
	17#	0.817
	18#	0.767
	19#	0.594

A study on the response relationship between air pollution process and meteorological wind field in an industrial park
