气象与环境学报 ›› 2024, Vol. 40 ›› Issue (2): 103-107.doi: 10.3969/j.issn.1673-503X.2024.02.013

• 快报 • 上一篇    下一篇

华北区域本底地区夏季近地面臭氧来源的量化解析

刘宁微1,2(),马思萌3,*(),杨森2,权维俊4,5,李丽光2,王若男6,李裕赫7,战莘烨2,8

  1. 1. 上甸子国家大气本底站, 北京 101507
    2. 中国气象局沈阳大气环境研究所, 辽宁沈阳 110166
    3. 中国民航大学, 天津 300300
    4. 北京城市气象研究院, 北京 100089
    5. 北京市气象台, 北京 100097
    6. 辽宁省气象装备保障 中心, 辽宁沈阳 110166
    7. 中国民航东北地区空中交通管理局气象中心, 辽宁沈阳 110161
    8. 鞍山市气象局, 辽宁鞍山 114004
  • 收稿日期:2024-02-20 出版日期:2024-04-28 发布日期:2024-05-25
  • 通讯作者: 马思萌 E-mail:liunw@iaesy.cn;smma@cauc.edu.cn
  • 作者简介:刘宁微, 女, 1977年生, 正研级高级工程师, 主要从事环境气候变化研究, E-mail: liunw@iaesy.cn
  • 基金资助:
    上甸子大气本底站开放研究课题(SDZ20220912);辽宁省自然科学基金面上项目(2022-MS-098);中国气象局沈阳大气环境研究所结余经费项目(2022SYIAEJY2);中国气象局沈阳大气环境研究所开放基金项目(2019SYIAE13);国家自然科学基金项目(42005040)

Quantitative source appointment of surface ozone in summer in background areas of North China

Ningwei LIU1,2(),Simeng MA3,*(),Sen YANG2,Weijun QUAN4,5,Liguang LI2,Ruonan WANG6,Yuhe LI7,Shenye ZHAN2,8

  1. 1. Shangdianzi National Atmospheric Background Station, Beijing 101507, China
    2. Shenyang Institute of Atmospheric Environment, CMA, Shenyang 110166, China
    3. Civil Aviation University of China, Tianjin 300300, China
    4. Beijing Institute of Urban Meteorology, Beijing 100089, China
    5. Beijing Meteorological Observatory, Beijing 100097, China
    6. Liaoning Provincial Meteorological Equipment Support Center, Shenyang 110166, China
    7. Meteorological Center of Northeast Air Traffic Administration of CAAC, Shenyang 110161, China
    8. Anshan Meteorological Service, Anshan 114004, China
  • Received:2024-02-20 Online:2024-04-28 Published:2024-05-25
  • Contact: Simeng MA E-mail:liunw@iaesy.cn;smma@cauc.edu.cn

RichHTML

4

PDF (PC)

52

摘要：

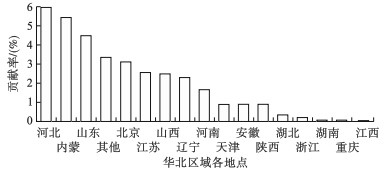

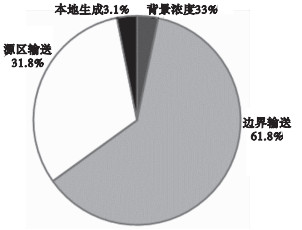

以北京上甸子国家大气本底站代表华北区域本底地区，利用CAMx模式的臭氧(O3)源解析方法(OSAT)对2019年6月25日至7月31日该地区O3浓度进行模拟研究，量化不同来源组分和追踪区域的贡献，分析O3浓度的来源构成。结果表明：对华北区域本底地区地面O3浓度贡献由大到小的组分依次为边界输送(61.8%)、源区输送(31.8%)、背景浓度(3.3%)和本地生成(3.1%)，主要追踪源区域依次为河北(5.70%)、内蒙古(5.43%)和山东(4.48%)，源类别依次为民用源(15.35%)、农业源(10.72%)、交通源(7.21%)和工业源(1.62%)，主要前体物依次为NOx(29.6%)和VOCs(5.3%)。华北区域本底地区地面O3浓度主要由边界输送和源区输送贡献，这进一步验证了上甸子站作为大气本底站的合理性。

关键词: 大气本底站, 臭氧, CAMx, 源解析方法

Abstract:

This study uses the Shangdianzi national background station in Beijing to represent the background area in North China, and adopts the Ozone Source Appointment Technology (OSAT) method of the CAMx model to analyze the ozone source contribution in North China background areas from June 25 to July 31, 2019. A simulation study of O3 concentration was conducted to quantify the contribution of different source components and tagging regions, aiming to deeply analyze the source composition of ground-level O3 concentration in the background area of North China. The components that contribute to the ground O3 concentration in this region, from high to low, were boundary transport (61.8%), source transport (31.8%), background concentration (3.3%), and local generation (3.1%). The main source tagging regions from high to low were were Hebei province (5.70%), Inner Mongolia autonomous region (5.43%), and Shandong province (4.48%). The source categories were civil source (15.35%), agricultural source (10.72%), transportation source (7.21%), and industrial source (1.62%), and the main precursors were NOx (29.6%) and VOCs (5.3%). The ground ozone concentration in North China background area is mainly contributed by boundary transport and source transport, which further validates the rationality for Shangdianzi station as an atmospheric background station.

Key words: Atmospherie background station, Ozone, CAMx, Source appointment technology

中图分类号:
